Thông tin chi tiết sản phẩm:
|
| Kiểu: | bể chứa nước | Lớp chính xác: | Độ chính xác tiêu chuẩn |
|---|---|---|---|
| Sự chính xác: | Trong phạm vi ±15% | Ứng dụng: | PV |
| Hỗ trợ tùy chỉnh: | OEM, ODM | Quyền lực: | 220V 50HZ |
| Lớp bảo vệ: | / | Điện áp: | Thiết Bị Điện 220V |
| Bảo hành: | 1 năm | Kích thước bên trong: | 700*700*1200mm |
| Kích thước bên ngoài: | 1000*1000*1320mm | Cỡ mẫu tối đa: | 300*400*100mm |
| Phương pháp nâng mẫu: | Trang bị tời điện để vận chuyển mẫu lên xuống | trọng lượng mẫu: | Tối đa lên tới 100kg |
| Quyền lực: | Một pha, 220V 50Hz | tiêu chuẩn kiểm tra: | IEC 60529 - IPX7 |
| Làm nổi bật: | medical suture diameter tester,HD suture diameter measurement,PV module testing equipment with warranty |
||

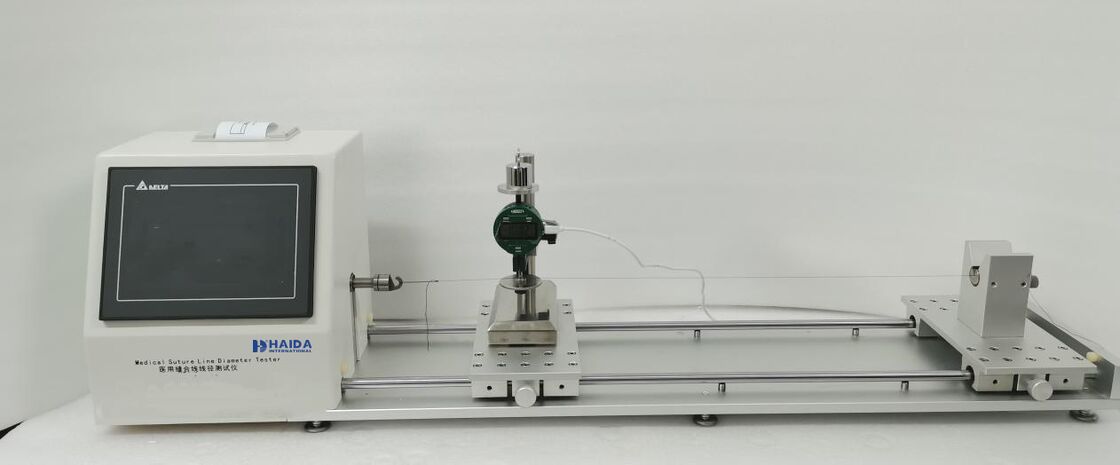

Equipped with a 7-inch K600+ core/dot matrix 65-color touchscreen display at 800*480 resolution. The PLC control system dynamically displays the loading force value. The operable interface is selectable: Chinese/English/Chinese-English switchable. It features digital closed-loop control, an AD acquisition speed of 500KHz, and an internal resolution of 500,000 counts. Includes a high-precision clock chip for power-off storage and overload alarm with automatic shutdown protection. Touch controls include: Nominal Size, Test Load, Print, Test, Move Left, Move Right, Time, and Calibration. Utilizes weight loading for tension, automatically records diameter data, automatically outputs data reports, and prints test results via the built-in printer.
Manufactured in accordance with the clauses related to diameter testing in standards YY1116-2020 "Absorbable Surgical Suture" and YY0167-2020 "Non-Absorbable Surgical Suture".
| Parameter | Specification |
|---|---|
| Nominal Size Range | 12-0 to 10 medical sutures |
| Diameter Measurement Range | 0–5 mm |
| Measurement Error | ≤ ±1‰ |
| Resolution | 0.001 mm |
| Presser Foot Diameter | 12.7 ± 0.02 mm |
| Reference Plate Diameter | 50 mm |
| Presser Foot & Plate Flatness | ≤ ±0.005 mm |
| Presser Foot & Plate Parallelism | ≤ 0.5% |
| Loading Weights Range | 0–2 Kg |
| Weight Accuracy | ±0.1 g |
| Presser Foot Load | ≤60 g, 210 g ± 3 g |
| Print Method | Can print 3-point (1/4, 1/2, 3/4 positions) measurement data and average value; Can print the average of 10 tests, their overall average, and deviation. |
| Shipping List | Main unit x1, Certificate of Conformity x1, Matching fixtures, Operation manual x1, Printer paper x1 roll, Matching hook weights. |
| Power Supply | AC 90V-240V / 50Hz |
| Data Saving | Onboard dot matrix printer / USB export to computer |
| Net Weight | 38 kg |
| Overall Dimensions | 320 * 1200 * 280 (mm) |
