Thông tin chi tiết sản phẩm:
|
| thể tích buồng: | ≥0,5 m³, với cửa quan sát thủy tinh. | Nguồn cung cấp điện: | AC 220V, 50Hz, 1KVA |
|---|---|---|---|
| Chiếu sáng nội bộ: | Ít hơn 20 Lux. | Tốc độ chuyển động của đầu dây phát sáng: | 10 mm/s đến 25 mm/s (tiếp cận hoặc rút lại từ mẫu) |
| Làm nổi bật: | Flammability Testing Equipment,1KVA Flammability Testing Equipment |
||

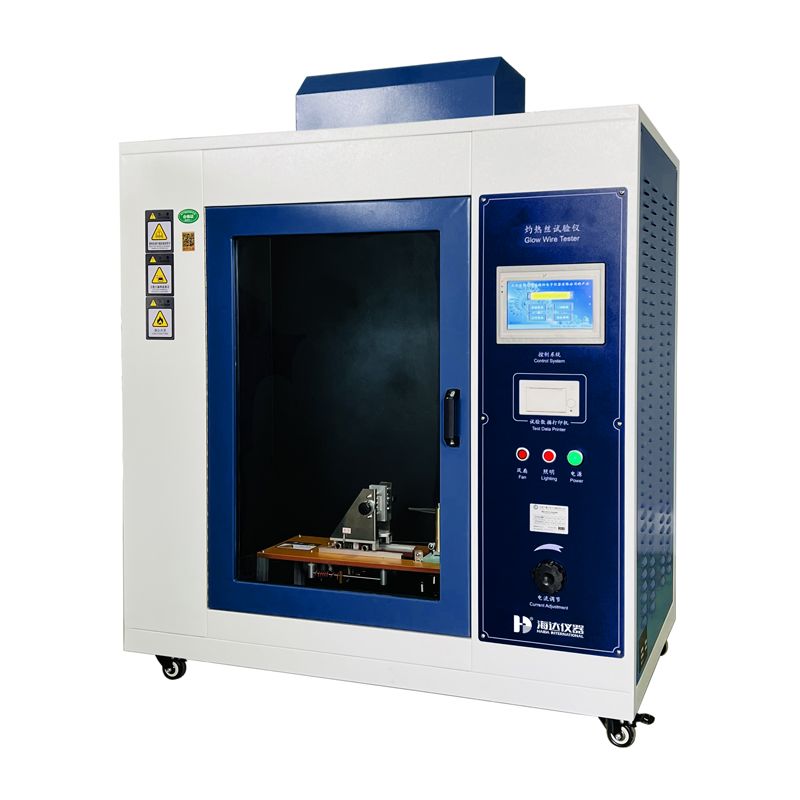

The glow-wire test simulates thermal stress or ignition sources caused by overheated components or overloaded resistors in a short period, assessing fire hazards for parts or components under fault or overload conditions. It applies to plastic and non-metallic insulating materials used in electrical and electronic products, components, and household appliance parts, such as switch housings and relay sockets. This tester features a PLC + color LCD touchscreen control system with an intuitive interface and includes a built-in printer for recording test conditions and results.
| Model | 6002-HD |
| Control System | 7-inch color LCD touchscreen + PLC (Programmable Logic Controller), equipped with a test data printer. |
| Display System | 7-inch color LCD touchscreen for setting and displaying glow time (Ta), ignition time (Ti), flame extinction time (Te), glow-wire temperature, print interface, and operational status. |
| Chamber Volume | ≥0.5 m³, with a glass observation door. |
| Internal Illuminance | Less than 20 Lux. |
| Glow-Wire Temperature | Adjustable from ambient + 10°C to 1000°C, measured using a Ø1mm nickel-chromium armored (K-type) imported thermocouple. |
| Force Applied to Sample | 0.95 ± 0.10 N, with a penetration depth limited to 7.0 ± 0.5 mm (automatically sensed). |
| Glow-Wire | Made of nickel/chromium alloy (>77% Ni / 20±1% Cr). The diameter before bending is 4.0 ± 0.07 mm, with other dimensions manufactured to standard tolerances. |
| Movement Speed of Glow-Wire Tip | 10 mm/s to 25 mm/s (approaching or retracting from the sample). |
| Wooden Board | White pine board, thickness >10 mm, placed 200±5 mm below the sample contact point. |
| Timer | Adjustable range: 0-999.9 seconds, accuracy: ±0.1 seconds. Glow time (Ta) is settable, while ignition duration (Ti) and flame extinction time (Te) are recordable. |
| Key Features | Automated control system. After initiation, the sample carriage automatically moves the specimen to the glow-wire and retracts after the set glow time. Features black interior, ventilation, lighting, and digital displays for easy observation and recording. |
| Power Supply | AC 220V, 50Hz. |
After-Service:
Should any issues arise during your testing process, we guarantee:
Timely Response: A formal reply within 48 hours.
Swift Resolution: A proposed solution within 3 working days.
Comprehensive Support: Access to English operation manuals, instructional videos, and video conference assistance.
Why Choose Us?
Global-Ready Design
Built-in voltage auto-switching (110V/220V), international plug compatibility, and safety-certified indicator protection.
Exceptional After-Sales Support
18-month comprehensive warranty. Industry-unique benefit: Complimentary repair service for controllers – even competitor units. Simply ship the controller to us.
Binding Quality Commitment
A formal Quality Assurance Letter accompanies every contract signing, guaranteeing performance and building trust.
Industrial-Grade Protective Packaging
(e.g., Triceratops) is individually wrapped in anti-static bubble film and secured in reinforced wooden crates. This ensures:
• Shock absorption & impact resistance
• Moisture & corrosion protection
• Non-toxic, odorless materials
• Optimal transparency for inspection
FAQ:Q: Are you a trading company or manufacturer?
A: Integrated manufacturer with 21+ years specializing in test equipment and 6 years of export expertise.
Q: What is your delivery timeline after order confirmation?
A:Standard orders: 10-25 working days
Stock orders: Ship within 3 days
Note: Lead times vary by product specifications and order volume.
Q: What are your warranty and after-sales service terms?
A:12-month comprehensive warranty on all testing machines
Industry-unique benefit: Complimentary controller repairs (including non-HAIDA units)
Post-warranty support: Dedicated technical team for troubleshooting, operational guidance, and complaint resolution
Q: How do you ensure product quality and service?
A:100% pre-shipment inspection with full performance testing
Global-ready design: Voltage auto-switching (110V/220V), international plugs, safety-certified indicators
Multi-tier training support:
✓ Instructional operation videos
✓ On-site engineer training (upon request)
Market-proven reliability:
Globally recognized by industrial users
Q: Do you offer product customization?
A: Yes, we develop tailored solutions based on your technical parameters and application requirements.
