Thông tin chi tiết sản phẩm:
|
| Kiểm soát: | PLC + màn hình cảm ứng màu 5 " | Đốt: | Kim số 18 do Hoa Kỳ sản xuất (ASTM D4151-2010 §6.3-6.4 Tuân thủ) |
|---|---|---|---|
| Tự động thời gian: | Độ phân giải 0,1s | thời gian đánh lửa: | 0-99,99S có thể điều chỉnh |
| Chế độ kiểm tra: | Tác động đánh lửa/ngọn lửa theo thời gian | Chứa mẫu: | ASTM D4151-2010 §6.2 Tuân thủ |
| Khí ga: | Butane (tinh khiết hóa học) | Chủ đề đánh dấu: | 11.7TEX3 bông trắng |
| Trọng lượng: | 30 ± 5g | Kích thước: | 600 × 400 × 370mm |
| Nguồn cung cấp điện: | Điện xoay chiều 220V, 50HZ | ||
| Làm nổi bật: | Blankets Flammability Tester,Blankets Flammability Testing Machine |
||

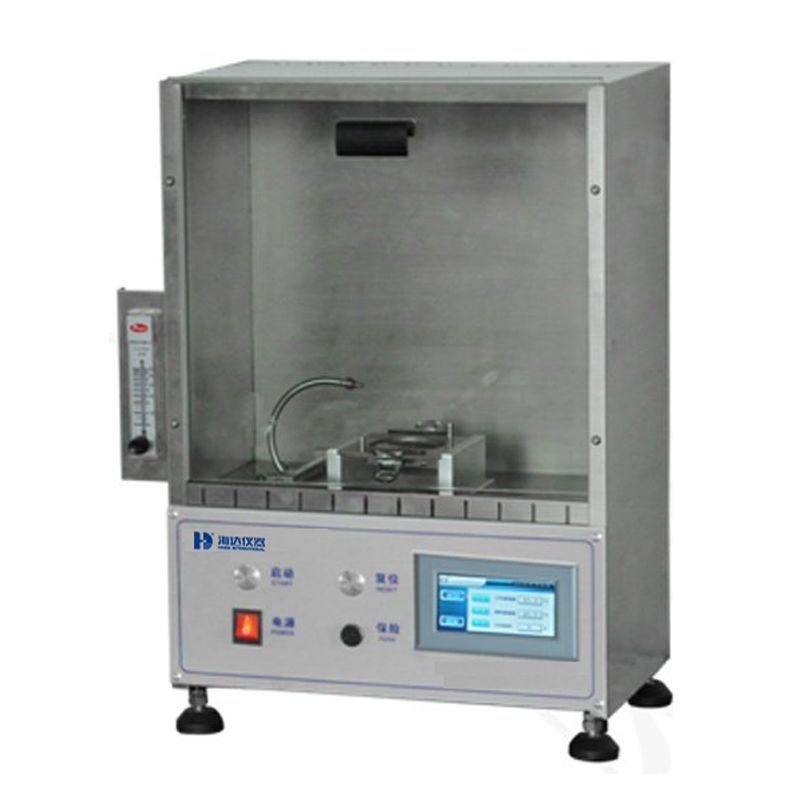

Blanket Flammability Tester evaluates the flame resistance and surface flame spread characteristics of blanket fabrics. The test method involves exposing specimens to a standardized flame for a specified duration, then assessing the burning degree, damage, or discoloration of standard test paper to grade the fabric's performance.
ASTM D4151 Standard Test Method for Flammability of Blankets
| Model | 6025-HD |
| Control | PLC + 5" color touchscreen |
| Burner | US-made No.18 needle (ASTM D4151-2010 §6.3-6.4 compliant) |
| ASTM-specified micro gas flow valve (0-50mL/min) | |
| Chamber | 520(H)×375(W)×220(D)mm stainless steel, 12×Ø12.7mm vents, glass window (ASTM D4151-2010 §6.1) |
| Auto-timing | 0.1s resolution |
| Ignition time | 0-99.99s adjustable |
| Test modes | Timed ignition/Flame impact |
| Brush device | 0.41mm nylon bristles (20 strands/cluster, 4 clusters/25mm, 19mm length) per ASTM D4151-2010 §6.5 |
| Sample holder | ASTM D4151-2010 §6.2 compliant |
| 4.11 Includes 16mm flame/8mm ignition distance templates | |
| Gas | Butane (chemically pure) |
| Marker thread | 11.7tex3 white cotton |
| Weight | 30±5g |
| 4.21 Cloud data/control options (as above) | |
| Dimensions | 600×400×370mm |
| Power | AC220V/50Hz, 50W |
Why choose us?
1.Design & Production : Solution Consultation for each order
Recommend the most cost -performance machine
Research & Develop the suitable one for Special- designed Model.
2.Shipping & Delivery: One-Stop Service
Production- Deliver to your door - Installation & Training- Technical Support
3.Warranty
1 year warranty with lifetime technology support
4.After-Sale Service
React within 2 Hours
Video inspection & on-site service combined
FAQ:
Q: Are you a trading company or manufacturer?
A: Integrated manufacturer with 21+ years specializing in test equipment and 6 years of export expertise.
Q: What is your delivery timeline after order confirmation?
A:Standard orders: 10-25 working days
Stock orders: Ship within 3 days
Note: Lead times vary by product specifications and order volume.
Q: What are your warranty and after-sales service terms?
A:12-month comprehensive warranty on all testing machines
Industry-unique benefit: Complimentary controller repairs (including non-HAIDA units)
Post-warranty support: Dedicated technical team for troubleshooting, operational guidance, and complaint resolution
Q: How do you ensure product quality and service?
A:100% pre-shipment inspection with full performance testing
Global-ready design: Voltage auto-switching (110V/220V), international plugs, safety-certified indicators
Multi-tier training support:
✓ Instructional operation videos
✓ On-site engineer training (upon request)
Market-proven reliability:
Globally recognized by industrial users
Q: Do you offer product customization?
A: Yes, we develop tailored solutions based on your technical parameters and application requirements.
