Thông tin chi tiết sản phẩm:
|
| Kiểm tra điện áp: | 220V-240V | Tốc độ tách điện cực: | 254mm ± 25 mm mỗi giây |
|---|---|---|---|
| Tần số vòng cung: | Khoảng 40 cung mỗi phút | Nguồn cung cấp điện: | AC 220V, 50Hz, 1KVA |
| Kiểm tra điện cực 1: | Điện cực cố định: Dây dẫn đồng rắn (Ø3,5mm) với đầu vát 30 ° | Kiểm tra điện cực 2: | Điện cực di chuyển: Thanh thép không gỉ (Ø3mm) với đầu hình nón 60 ° |
| Làm nổi bật: | Lab flammability testing equipment,High Current Arc Lab Testing Equipment |
||

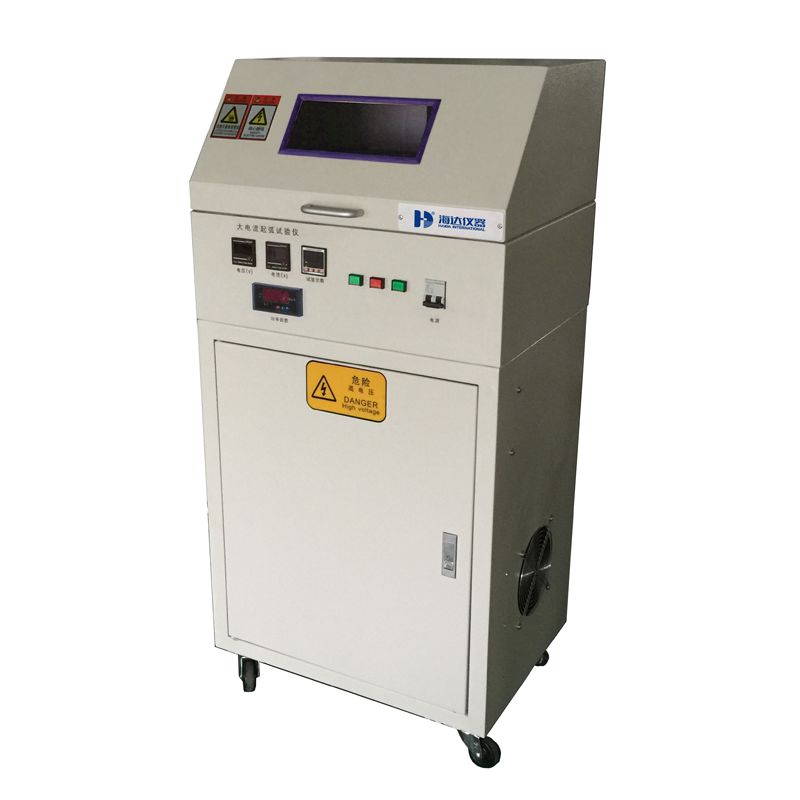

This tester is designed to evaluate the arc resistance performance of electrical/electronic products, household appliances, and their materials. It simulates leakage currents between live parts of opposite polarity or between live parts and grounded metal components, measuring and assessing the arc resistance of insulating materials under specified voltages.
IEC 60950, GB/T 4943.
| Model | 6009-HD |
| Test Voltage | 220V-240V |
| Electrode Separation Speed | 254mm ±25mm per second |
| Arc Frequency | Approximately 40 arcs per minute. |
| Test Electrodes | Fixed Electrode: Solid copper conductor (Ø3.5mm) with a 30° beveled tip |
| Moving Electrode: Stainless steel rod (Ø3mm) with a 60° conical tip | |
| Electrodes are positioned at a 45° angle to the horizontal plane; tip curvature radius <0.1mm. | |
| Short-Circuit Current | Adjustable inductive load to achieve a power factor of 0.5 and short-circuit current of 33A |
| Key Features | Integrated test chamber and load box (upper section for testing, lower for load). Enclosure: Painted steel with stainless steel/brass components. Electrodes: Copper (fixed) and stainless steel (moving), resistant to high temperatures and corrosion. |
| Power Supply | AC 220V, 50Hz |
Why choose us?
1.Design & Production : Solution Consultation for each order
Recommend the most cost -performance machine
Research & Develop the suitable one for Special- designed Model.
2.Shipping & Delivery: One-Stop Service
Production- Deliver to your door - Installation & Training- Technical Support
3.Warranty
1 year warranty with lifetime technology support
4.After-Sale Service
React within 2 Hours
Video inspection & on-site service combined
FAQ:
Q: Are you a trading company or manufacturer?
A: Integrated manufacturer with 21+ years specializing in test equipment and 6 years of export expertise.
Q: What is your delivery timeline after order confirmation?
A:Standard orders: 10-25 working days
Stock orders: Ship within 3 days
Note: Lead times vary by product specifications and order volume.
Q: What are your warranty and after-sales service terms?
A:12-month comprehensive warranty on all testing machines
Industry-unique benefit: Complimentary controller repairs (including non-HAIDA units)
Post-warranty support: Dedicated technical team for troubleshooting, operational guidance, and complaint resolution
Q: How do you ensure product quality and service?
A:100% pre-shipment inspection with full performance testing
Global-ready design: Voltage auto-switching (110V/220V), international plugs, safety-certified indicators
Multi-tier training support:
✓ Instructional operation videos
✓ On-site engineer training (upon request)
Market-proven reliability:
Globally recognized by industrial users
Q: Do you offer product customization?
A: Yes, we develop tailored solutions based on your technical parameters and application requirements.
