Thông tin chi tiết sản phẩm:
|
| thể tích buồng: | ≥0,75 m³, với cửa quan sát thủy tinh | góc đầu đốt: | Có thể điều chỉnh: 20 °, 45 °, 90 ° (thẳng đứng) |
|---|---|---|---|
| khí nhiên liệu: | Metan cấp công nghiệp (độ tinh khiết ≥98%, do người dùng cung cấp) | chiều cao ngọn lửa: | Có thể điều chỉnh: 20mm-175mm (tuân thủ tiêu chuẩn) |
| Nguồn cung cấp điện: | Điện xoay chiều 220V, 50HZ | Kích thước (L×W×H): | 126 × 70 × 130cm (bao gồm cả bánh xe) |
| Làm nổi bật: | Button-Controlled Horizontal Flame Test Machine,Button-Controlled Vertical Flame Test Machine |
||

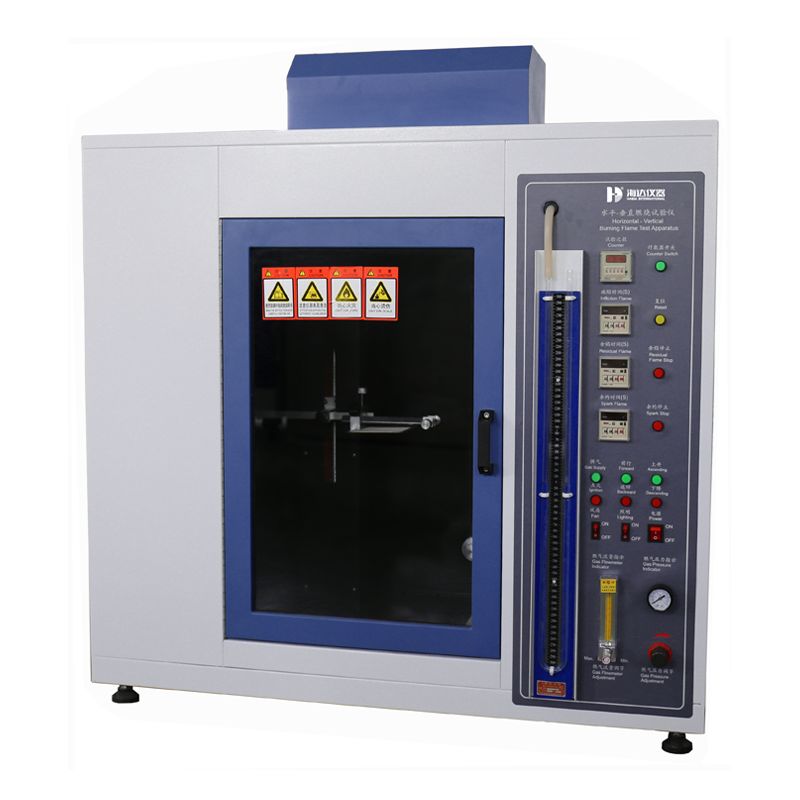

This apparatus is designed to evaluate the burning characteristics of plastic materials in accordance with UL 94 (Flammability of Plastic Materials for Parts in Devices and Appliances).
It conducts horizontal and vertical flammability tests on plastic components, featuring: Motorized operation for safety and ease of use. Gas flow meter for precise flame adjustment.
UL 94, GB/T 2408, IEC 60695-11-4, GB/T 5169.22, IEC 60695-11-3, GB/T 5169.15, IEC 60695-11-10, GB/T 5169.16, UL 60065, GB/T 5169.17-2017, IEC 60695-11-20.
| Parameter | Description |
| Chamber Volume | ≥0.75 m³, with glass observation door. |
| Test Timing | Adjustable: 0-99 minutes 99 seconds for: • Flame application time • Afterflame time • Afterglow time |
| Burner Angle | Adjustable: 20°, 45°, 90° (vertical). |
| Burner Specifications | Nozzle inner diameter: Ø9.5±0.3mm; Effective length: 100±10mm; Equipped with air adjustment holes. |
| Fuel Gas | Industrial-grade methane (≥98% purity, user-provided). |
| Flame Height | Adjustable: 20mm-175mm (standard-compliant). |
| Key Features | Integrated lighting, exhaust system, gas flow/pressure regulators, pressure gauge, U-tube manometer, and sample fixture. |
| Dimensions (L×W×H) | 126×70×130cm (including casters). |
| Power Supply | AC 220V, 50Hz. |
Why Choose Us?
Global-Ready Design
Built-in voltage auto-switching (110V/220V), international plug compatibility, and safety-certified indicator protection.
Exceptional After-Sales Support
18-month comprehensive warranty. Industry-unique benefit: Complimentary repair service for controllers – even competitor units. Simply ship the controller to us.
Binding Quality Commitment
A formal Quality Assurance Letter accompanies every contract signing, guaranteeing performance and building trust.
Industrial-Grade Protective Packaging
(e.g., Triceratops) is individually wrapped in anti-static bubble film and secured in reinforced wooden crates. This ensures:
• Shock absorption & impact resistance
• Moisture & corrosion protection
• Non-toxic, odorless materials
• Optimal transparency for inspection
FAQ:Q: Are you a trading company or manufacturer?
A: Integrated manufacturer with 21+ years specializing in test equipment and 6 years of export expertise.
Q: What is your delivery timeline after order confirmation?
A:Standard orders: 10-25 working days
Stock orders: Ship within 3 days
Note: Lead times vary by product specifications and order volume.
Q: What are your warranty and after-sales service terms?
A:12-month comprehensive warranty on all testing machines
Industry-unique benefit: Complimentary controller repairs (including non-HAIDA units)
Post-warranty support: Dedicated technical team for troubleshooting, operational guidance, and complaint resolution
Q: How do you ensure product quality and service?
A:100% pre-shipment inspection with full performance testing
Global-ready design: Voltage auto-switching (110V/220V), international plugs, safety-certified indicators
Multi-tier training support:
✓ Instructional operation videos
✓ On-site engineer training (upon request)
Market-proven reliability:
Globally recognized by industrial users
Q: Do you offer product customization?
A: Yes, we develop tailored solutions based on your technical parameters and application requirements.
