Thông tin chi tiết sản phẩm:
|
| thể tích buồng: | ≥0,5 m³, với cửa quan sát thủy tinh | Chiếu sáng nội bộ: | <20 Lux |
|---|---|---|---|
| Dầu: | Khí butan (độ tinh khiết ≥95%); Không xâm nhập vào ống đốt | chiều cao ngọn lửa: | Có thể điều chỉnh: 12 mm ± 1mm (bao gồm đo đo) |
| Cơ chế lái: | Có động cơ | hẹn giờ: | Phạm vi điều chỉnh: 0-999,9 giây; Cấu hình đánh lửa/ghi thời gian |
| hiển thị nhiệt độ: | Phạm vi: 0-1000 ° C; Độ phân giải: 1 ° C. | Nguồn cung cấp điện: | AC 220V, 50Hz, 1KVA |
| Làm nổi bật: | Touch Screen Needle Flame Testing Machine,Needle Flame Testing Machine,Motorized Drive Needle Flame Testing Machine |
||

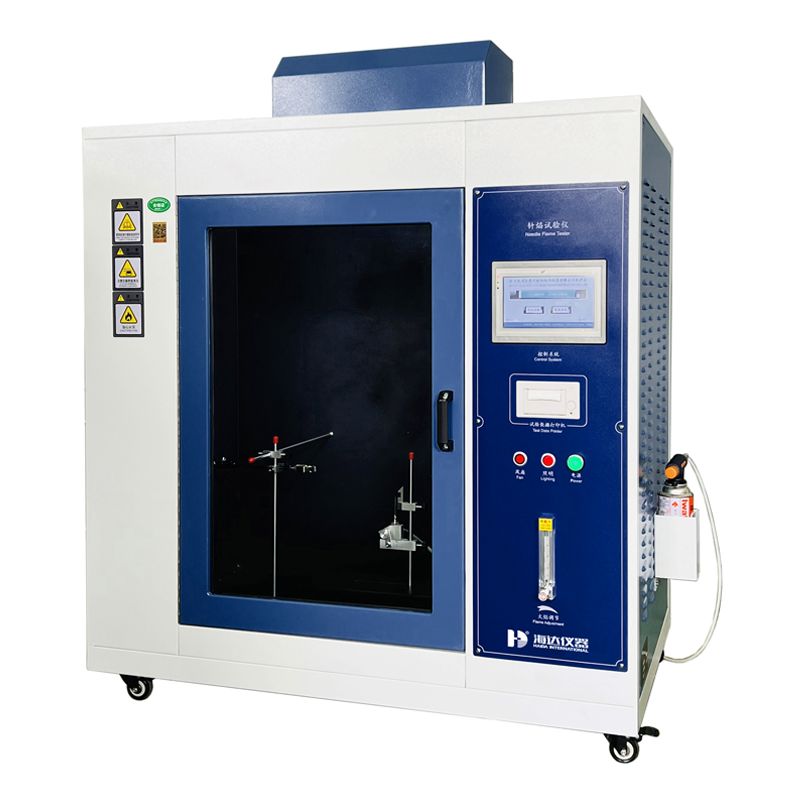

This instrument simulates small flames generated under fault conditions (e.g., leakage currents, overheating, poor contacts) to assess fire hazards. It is applied when glow-wire or horizontal-vertical flame tests are unsuitable for small components. If a sample ignites during glow-wire testing, the needle flame test further evaluates combustion risks. Suitable for parts of electrical/electronic products and household appliances (e.g., terminal blocks, centrifugal switches, rice cooker sockets).
IEC 60695-11-5, GB/T 5169.5, IEC 60884-1, GB 2099.1, VDE 0620, IEC 60335-1, GB 4706.1, UL 60065
| Model | 6012-HD |
| Chamber Volume | ≥0.5 m³, with glass observation door |
| Internal Illuminance | <20 Lux |
| Fuel | Butane gas (≥95% purity); no air ingress into burner tube (user-provided) |
| Burner Specifications | Length: ≥35mm; Inner diameter: Ø0.5mm±0.1mm; Outer diameter: ≤Ø0.9mm. |
| Flame Height | Adjustable: 12mm±1mm (includes measuring gauge). |
| Flame Temperature | 100°C±5°C to 700°C±3°C in 23.5±1 seconds. K-type armored thermocouple (Ø0.5mm, imported); optional calibration device included. |
| Temperature Display | Range: 0-1000°C; Resolution: 1°C |
| Timer | Adjustable: 0-99 minutes 99 seconds; Resolution: 0.01s; Configurable ignition/duration recording. |
| Drive Mechanism | Motorized |
| Key Features | Automated control: Burner moves to sample position, shuts off gas post-test, and retracts. 3D-adjustable fixture, integrated ventilation/lighting, and user-friendly operation. |
| Power Supply | AC 220V, 50Hz |
Why choose us?
1.Design & Production : Solution Consultation for each order
Recommend the most cost -performance machine
Research & Develop the suitable one for Special- designed Model.
2.Shipping & Delivery: One-Stop Service
Production- Deliver to your door - Installation & Training- Technical Support
3.Warranty
1 year warranty with lifetime technology support
4.After-Sale Service
React within 2 Hours
Video inspection & on-site service combined
FAQ:Q: Are you a trading company or manufacturer?
A: Integrated manufacturer with 21+ years specializing in test equipment and 6 years of export expertise.
Q: What is your delivery timeline after order confirmation?
A:Standard orders: 10-25 working days
Stock orders: Ship within 3 days
Note: Lead times vary by product specifications and order volume.
Q: What are your warranty and after-sales service terms?
A:12-month comprehensive warranty on all testing machines
Industry-unique benefit: Complimentary controller repairs (including non-HAIDA units)
Post-warranty support: Dedicated technical team for troubleshooting, operational guidance, and complaint resolution
Q: How do you ensure product quality and service?
A:100% pre-shipment inspection with full performance testing
Global-ready design: Voltage auto-switching (110V/220V), international plugs, safety-certified indicators
Multi-tier training support:
✓ Instructional operation videos
✓ On-site engineer training (upon request)
Market-proven reliability:
Globally recognized by industrial users
Q: Do you offer product customization?
A: Yes, we develop tailored solutions based on your technical parameters and application requirements.
