Thông tin chi tiết sản phẩm:
|
| Kênh thử nghiệm: | 5 nhóm kiểm tra độc lập | ổn định điện áp: | ± 1% |
|---|---|---|---|
| Kiểm tra phạm vi điện áp: | 100V-6000V (có thể điều chỉnh liên tục) | Chế độ điện áp đầu ra: | AC/DC (có thể chuyển đổi) |
| Bộ điều chỉnh điện áp: | Đầu ra: 0-250V có thể điều chỉnh; Dung lượng: 5kva | Thời lượng kiểm tra: | 6 tiếng |
| Khoảng thời gian giọt: | Có thể điều chỉnh: 0-99,99 giây/phút/giờ | thể tích buồng: | 900L × 650W × 950H (mm); 0,56 m³ |
| Nguồn cung cấp điện: | AC 220V, 50Hz, 1KVA | ||
| Làm nổi bật: | High Voltage Tracking Resistance Test Machine,High Voltage Tracking Resistance Test Equipment,6000V Tracking Resistance Test Equipment |
||

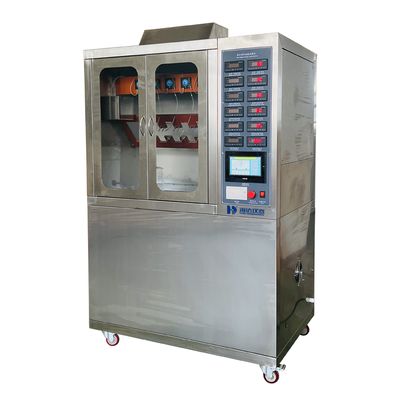

This instrument is designed to evaluate the tracking and erosion resistance of electrical/electronic products, household appliances, and their materials. It simulates severe environmental conditions by applying liquid contaminants and inclined samples under power frequency (45Hz-65Hz) to assess the tracking and erosion resistance grades of electrical insulation materials.
| Model | 6007-HD |
| Test Channels | 5 independent test groups. |
| Voltage Stability | ±1% |
| Test Voltage Range | 100V-6000V (continuously adjustable) |
| Output Voltage Mode | AC/DC (switchable) |
| Voltage Regulator | Output: 0-250V adjustable; Capacity: 5kVA |
| Test Transformer | Capacity: 5kVA; Max. output voltage: AC 6000V |
| High-Precision Stabilizer | Output: AC 220V; Power: 6000W; Accuracy: ±1% |
| Electrodes | Material: 304 stainless steel, thickness: 0.5mm; Electrode spacing: 50.0mm ±0.1mm |
| Overcurrent Protection | Trips at ≥60mA for 2 seconds, triggering an audible alarm (reset via voltage stop). |
| Tracking Criteria | Per GB/T 6553-2014 Clause 4.1.2: Voltage applied (2.5kV/3.5kV/4.5kV) with contaminant flow; current must remain below 60mA for 6 hours to pass. |
| Test Duration | 6 hours. |
| Droplet Interval | Adjustable: 0-99.99 seconds/minutes/hours |
| Droplet System | High-precision peristaltic pump (LEAF); Flow rate: 0.00185-20 mL/min; Speed: 0.1-50 rpm; Accuracy: <0.5%. |
| Test Solution | Mixture of ammonium chloride, isooctylphenoxy polyethoxy ethanol (nonionic wetting agent), and deionized water. Resistivity: (3.95 ±0.05) Ω·m at (23±1)°C |
| Filter Paper | Standard dimensions; Thickness: 0.15-0.17mm |
| Chassis Material | SUS304 stainless steel (brushed finish) |
| Contaminant Tank | 316 stainless steel with sealed design. |
| Chamber Volume | 900L × 650W × 950H (mm); 0.56 m³ |
| Overall Dimensions | 1300L × 700W × 1800H (mm) |
| Control System | PLC + touchscreen; Automated report generation; Built-in thermal printer for real-time results. |
| Design Features | Integrated structure with control panel on the right |
| Glass-view door for observation | |
| Top-mounted exhaust fan for fume extraction post-test |
