Thông tin chi tiết sản phẩm:
|
| Ứng dụng: | Kiểm tra pin | Phương pháp nối dây: | AC bốn pha bốn pha |
|---|---|---|---|
| Trưng bày: | LCD | Phạm vi hiện tại: | 0-10A |
| Nghị quyết: | 0,001V/0,001A | Phương pháp nối dây: | AC 220V |
| Sự chính xác: | ± 0,1% | Cung cấp điện: | AC |
| Làm nổi bật: | Versatile Charge Discharge Battery Testing System,10A Charge Discharge Battery Testing System |
||
Detailed Information
Place of Origin: China
Brand Name: Kingpo
Certification: ISO9001, CE
Model Number: KP-GT065
Compliant Standard: IEC60065 Clause 12.1.1
Impact Rate: 7 times per minute
Drop Height: 50 mm
Maximum Test Count: 9999 times
Overall Dimensions: 2800 × 800 × 1000 mm
Test Table Size: 2500 × 500 mm
Maximum Load: 100 kg
Key Applications: AV test equipment, TV signal tester
Product Description

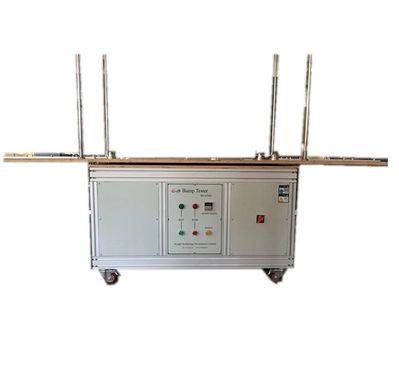

The KP-GT065 Bump Test Machine is designed in accordance with IEC60065 Clause 12.1.1 to evaluate the mechanical durability of audio, video, and similar electronic apparatus with a mass exceeding 7 kg.
The test involves placing the equipment on a wooden horizontal support and allowing it to undergo 50 free falls from a height of 5 cm onto a wooden surface. After completion, the apparatus must show no damage as defined by the standard.
Technical Parameters
Power Supply: 380 V, 50 Hz
Impact Frequency: 7 times/minute
Drop Height: 50 mm
Test Count Range: 1–9999 times (user-settable)
Operating Procedure
Set the desired number of drops using the digital counter.
Position the sample correctly on the test platform.
Press the “RUN” button to initiate testing.
The machine stops automatically when the set value is reached. Remove the sample and evaluate the results.
Note
The side guard panels may be omitted when testing smaller samples.
