Thông tin chi tiết sản phẩm:
|
| Độ phân giải quy mô: | 1 ° | Tải thử: | 50n |
|---|---|---|---|
| Phương pháp kiểm tra: | Cơ khí, nhiệt, hóa học, v.v. | Độ dày lớp phủ: | 25μm |
| Tiêu chuẩn kiểm tra: | ASTM, ISO, EN, v.v. | Tank cơ thể matiral: | 2～5 chu kỳ mỗi phút |
| Tận dụng trọng lượng: | 1kg ± 0,1kg | nhà máy: | Đúng |
| Bảo hành: | 1 năm | Vận tải: | Bằng đường biển |
| Màn hình cảm ứng: | LCD | Đòn bẩy: | 1 m |
| Trả lời cho probme: | Trong vòng 24 giờ | Tầng thử nghiệm ngang: | góc là hợp lý |
| Tổng trọng lượng: | 210kg |

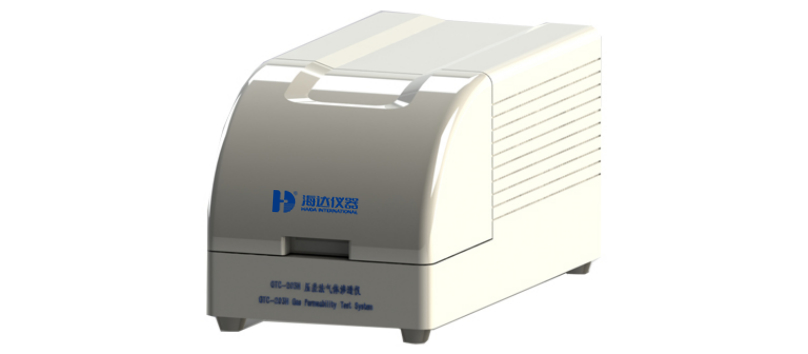

EQUIPMENT DETAILS 5099-HD WATER VAPOR PERMEABILITY TESTER(INFRARED METHOD)
--Picture for reference
PRODUCTS DESCRIPTION
This product is based on the testing principle of infrared moisture analysis sensor, providing a wide range and high efficiency water vapor transmission rate testing experience for medium and high water vapor barrier materials. It is suitable for water vapor transmission performance testing of plastic films, composite films, high barrier materials, backboards, sheets, paper, metal foils, packaging and other related materials in the fields of food, medicine, medical equipment, daily chemicals, photovoltaic electronics, etc. It can also be expanded to test the water vapor transmission performance of containers such as bottles, bags, and tubes.
TEST STANDARD
GBT 26253,ISO 15106-2,ASTM F1249,TAPPI T557,JIS K7129ISO 15106-3,DIN 53122-2,YBB 00092003
FEATURES
1. Equipped with laser pulse modulated infrared sensor, long optical path absorption, and higher measurement accuracy;
2. The three test chambers are completely independent and can test three identical or different samples at the same time (expandable container test);
3. One-button operation, the system adopts computer full intelligent control, and the entire test process is completed automatically;
4. High-quality components are used to ensure the stability and reliability of the instrument operation;
5. Automatic test: set the test parameters, the test will be automatically carried out after the start, and the test end will be automatically judged and the test results will be saved
6. Standard intelligent software monitors the test status in real time, saves the test data throughout the process, and is convenient for post-evaluation of the test process;
7. The system has self-detection capabilities and power-off data storage functions to avoid testing under fault conditions and protect data security during sudden power outages;
8. Wide range, high precision, fully automated temperature and humidity control, which can automatically meet the test under various test conditions according to parameter settings;
9. Provide multiple test process judgment modes such as manual, proportional and cyclic, which is convenient for the selection of various test needs;
10. The test range can be expanded as needed to meet the requirements of large transmittance testing;
11. Provide standard membrane for rapid calibration to ensure the accuracy and universality of test data;
12. Adopt fully automatic water bath hot and cold cycle temperature control technology, with a wider temperature control range, free from external environmental interference, and low requirements for laboratory test environment;
13. The test chamber adopts pneumatic automatic clamping device, which automatically clamps the sample with one button, which is convenient and fast to operate and has more reliable sealing;
14. Use limit zero point and sealed pipeline system, apply baseline technology, remove system errors, and make test results more accurate;
15. With high-precision mass flow meter, automatic flow control does not require manual intervention to ensure the stability of test process data;
16. Professional test pipeline flushing technology speeds up the test speed and makes the test more efficient;
17. Professional test pipeline sealing system ensures the cleanliness of carrier gas;
18. With gas flow monitoring function, it automatically alarms when there is less gas or no gas;
19. The host software encrypts the database system, and the test data can be stored, queried, printed, exported, etc.;
20. Equipped with universal data interfaces such as RS232 and USB to facilitate data transmission;
21. Provide professional software, hardware and special function customization services to meet the personalized needs of users in many aspects such as fixtures and software operations;
22. Optional software that complies with China's GMP for data traceability can be used to achieve multi-level authority management, audit tracking, electronic signature and other functions. The computerized system fully meets the needs of the pharmaceutical industry (optional).
STANDARD FEATURES
|
Item |
Description |
|
Measuring range (membrane) |
0.01～40 g/(m²·day) (standard) 0.1～1000 g/( m²·day) (optional) |
|
Resolution |
0.001 g/( m²·day) |
|
Number of samples |
1～3 pieces |
|
Sample size |
φ110mm |
|
Transmission area |
50cm² (other customization) |
|
Sample thickness |
<3 mm (other customization) |
|
Sample clamping method |
Pneumatic clamping |
|
Temperature control range |
5℃～65℃ (constant temperature water bath temperature control) |
|
Temperature control accuracy |
±0.1℃ |
|
Humidity control range |
0% RH, 5%～90%RH, 100%RH (fully automatic control) |
|
Humidity control accuracy |
±1%RH |
|
Calibration method |
Standard film calibration |
|
Carrier gas |
99.999% high purity nitrogen (gas source provided by the user) |
|
Carrier gas flow rate |
0～100 mL/min |
|
Gas source pressure |
≥0.2MPa |
|
Interface size |
1/8 inch metal tube |
|
Dimensions |
1000mm (L)×580 mm (W)×570mm (H) |
|
Power supply |
AC 220V 50Hz |
Haida International Equipment Co,Ltd was established in 2004, located in Dongguan city, Guangdong Province, China, is specialized in production and R&D of various material physical properties testing equipment. We have our own independent research and development center and four testing equipment production lines: textile, footwear, leather, mask. In 2006, textile, footwear, leather mask testing equipment officially put into production and entered the international market.
Q: How about your warranty?
A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.
Q: What is the order process?
A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.
Q: Can we visit your factory before order?
A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.
Q: Do you accept customization service?
A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.
