Thông tin chi tiết sản phẩm:
|
| Kích thước: | 1100mm*532mm*389mm | Tải thử: | 50n |
|---|---|---|---|
| Kiểm tra khối lượng: | 1kg | nhà máy: | Đúng |
| Kiểm tra Stoke: | 20 đến 60 mm (có thể điều chỉnh) | Tiêu chuẩn áp dụng: | En iso 8442-5 |
| Kẹp sức mạnh: | 130 + 2,5n | Tận dụng trọng lượng: | 1kg ± 0,1kg |
| Vật cố định: | Hai đồ đạc phù hợp với dao kéo khác nhau | Kiểm tra theo chu kỳ: | 15000 theo chu kỳ (có thể điều chỉnh) |
| Phương pháp sưởi ấm: | Hệ thống sưởi điện | Dịch vụ sau bán hàng: | Hỗ trợ kỹ thuật trực tuyến và hỗ trợ video |
| Đường kính thanh mô -men xoắn: | 10 ± 1mm | Tiêu chuẩn thử nghiệm: | ASTM, ISO, EN, GB |
| Cách sử dụng: | Để kiểm tra chất lượng và sự an toàn của dụng cụ nấu ăn |

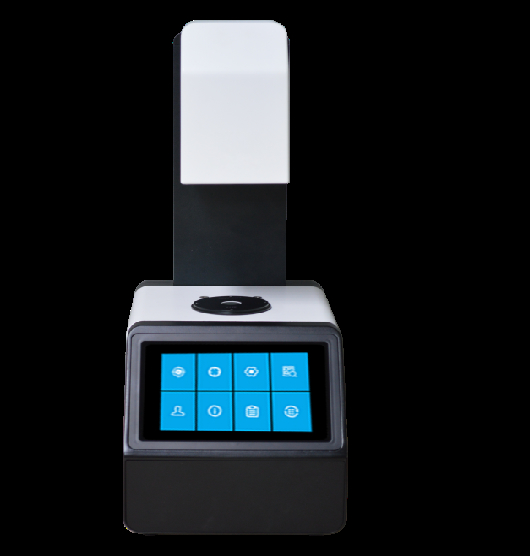

EQUIPMENT DETAILS OF 5096-HD LUMINOUS TRANSMITTANCE HAZE METER
***Picture for reference
DESCIBTION
It is designed for plastic sheets, films, glasses, LCD panel, touch screen and other transparent and semi-transparent materials haze and transmittance measurement. Our haze meter does not need warm-up during test which saves customer's time. Instrument conforms to ISO, ASTM, JIS, DIN and other international standards to meet all customers’ measuremen trequirement.
STANDARD
ASTM D1003/D1044,ISO13468/ISO14782,JIS K 7105,JIS K 7361,JIS K 7136,GB/T 2410-08
FEATURE
1). No need to do warm-up, after instrument is calibrated, it can be used. And measurement time is only 3 seconds.
2). Three kinds of light sources A,C and D65 for haze and total transmittance measurement.
3). It can realize transmittance compensation measurement which can provide higher accuracy test result.
4). Open measurement area, no limit on sample size.
5). Instrument is with 5.0 inches TFT display screen with good human-computer interface.
6). It can realize both horizontal and vertical measurement to measure different kinds of materials.
7). It adopts LED light source whose lifetime can reach 10 years.
8). Small size and light weight which makes it much easier to carry.
TECHNICAL PARAMETER
|
Measuring range |
0-100% |
|
Light source |
CIE-A,CIE-C,CIE-D65 |
|
Spectral Response |
CIE Luminosity function Y/V |
|
Geometry |
0/d |
|
Lighting and sample aperture size |
15mm/21mm |
|
Resolution |
0.01% |
|
Repeatability |
Light transmittance: ≤ 0.1% Haze: If H ≤ 10%, ≤ 0.05%; If H>10%, ≤0.1% |
|
Sample size |
Thickness ≤145mm |
|
Minimum reading |
0.1% |
|
Memory |
20000 value |
|
Interface |
USB |
|
DC24V |
|
|
Working environment |
|
|
Storage environment |
-20℃~50℃, RH≤80%, (under 35℃, No condensation of moisture) |
|
Machine size |
310 x 215 x 540mm |
|
Optional |
Fixture, haze standard plate, 5/7/10mm Custom Made Aperture |
Haida International Equipment Co,Ltd was established in 2004, located in Dongguan city, Guangdong Province, China, is specialized in production and R&D of various material physical properties testing equipment. We have our own independent research and development center and four testing equipment production lines: textile, footwear, leather, mask. In 2006, textile, footwear, leather mask testing equipment officially put into production and entered the international market.
Q: How about your warranty?
A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.
Q: What is the order process?
A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.
Q: Can we visit your factory before order?
A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.
Q: Do you accept customization service?
A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.
