5083-HD Leak Test Machine with 300mm Max Width & 40g Injection

5083-HD Leak Test Machine with 300mm Max Width & 40g Injection
5083-HD Leak Test Machine with 300mm Max Width & 40g Injection 5083-HD Leak Test Machine with 300mm Max Width & 40g Injection

Hình ảnh lớn :  5083-HD Leak Test Machine with 300mm Max Width & 40g Injection

Thông tin chi tiết sản phẩm:
Nguồn gốc: Trung Quốc
Hàng hiệu: Haida
Chứng nhận: CE,,ISO
Số mô hình: 5083-HD
Thanh toán:
Số lượng đặt hàng tối thiểu: 1
Giá bán: Có thể đàm phán
chi tiết đóng gói: Mỗi bộ được bảo vệ bằng sợi nhựa và màng PP, sau đó đưa vào vỏ gỗ mạnh mẽ với Chiến dịch Man
Thời gian giao hàng: 20 ngày sau khi được xác nhận đơn đặt hàng
Điều khoản thanh toán: L/C, T/T, D/A, D/P, Liên minh phương Tây, Moneygram
Khả năng cung cấp: 300 bộ mỗi tháng

5083-HD Leak Test Machine with 300mm Max Width & 40g Injection

Sự miêu tả
Đo góc: 20 °/ 60 °/ 85 ° Tốc độ cắt: 100 ~ 3000mm/phút có thể điều chỉnh
Chiều rộng xử lý tối đa: 300mm đột quỵ trục vít: 90 mm
Độ chính xác thời gian: 0,1s Khối lượng phun tối đa: 40g
Xi lanh: Đường kính9.5504 ± 0,0076mm Cân nặng: Phụ thuộc vào mô hình cụ thể
Phạm vi đường kính ống: Φ2-2000mm Góc bong tróc: 90 °
Phạm vi thời gian: 0-10000H Khả năng tiêm: 40*65 cm³
Làm nổi bật:

5083-HD leak test machine

,

leak test machine 300mm width

,

plastic test equipment with injection

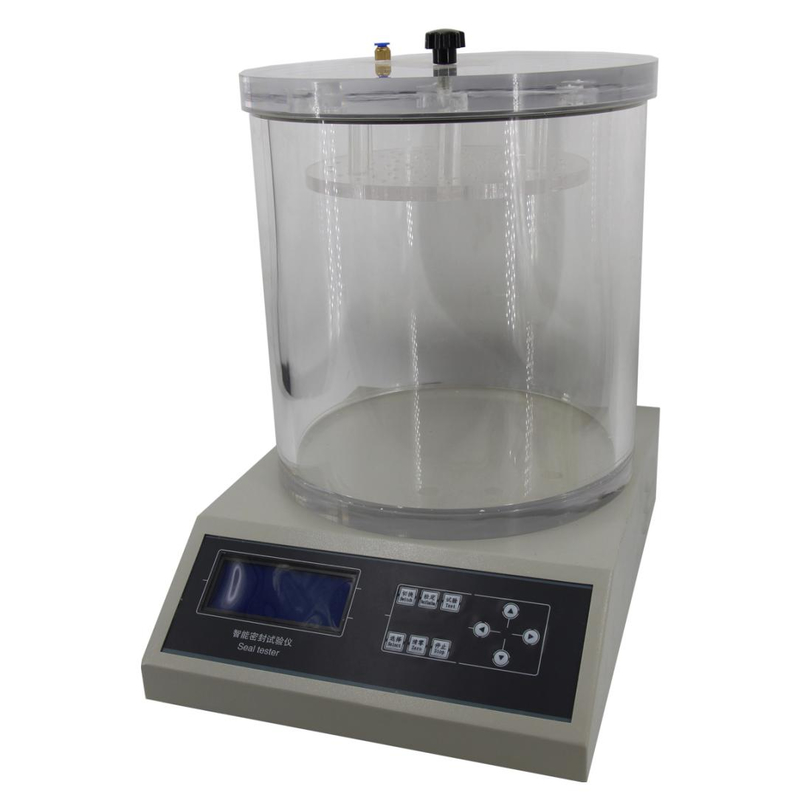

5083-HD Leak Test Machine (Vacuum Tester)
5083-HD Leak Test Machine with 300mm Max Width & 40g Injection 0
Product Description
This leak test machine is suitable for sealing tests of bottles, pipes, cans, and boxes in various industries including food, pharmaceutical, medical equipment, daily chemical, automotive, electronic components, and stationery. It can also evaluate sealing performance after impact tests and pressure resistance tests.
Design Standard
ASTM D3078, GB/T 15171
Test Principle
  • By evacuating the vacuum chamber, the sample immersed in water generates a pressure difference between inside and outside, allowing observation of gas escape to determine sealing performance
  • Through vacuum chamber evacuation, the sample develops internal/external pressure difference, enabling observation of sample expansion and shape recovery after vacuum release to assess sealing capability
Technical Parameters
Item Description
Vacuum Density -90-0kPa
Accuracy ± 0.1kPa
Pressure speed 1m/s
Available Vacuum room Size Standard: Φ270mm*210mm(H) (other sizes available)
Air pressure 0.7MPa (user-provided)
Gas Source interface Φ6PU pipe
Control ways Microcomputer control, automatic test
Display ways LCD display
Power AC 220V 50Hz (AC110V 50HZ)

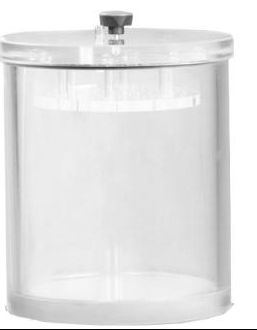

Standard Configuration Main unit, experimental sealed barrels, power cords
Net Weight 16kg
Dimensions (L*W*H) 420*320*520mm
About Haida International Equipment Co., Ltd
Established in 2004 and located in Dongguan city, Guangdong Province, China, Haida International Equipment Co., Ltd specializes in the production and R&D of various material physical properties testing equipment. We maintain our own independent research and development center and operate four testing equipment production lines: textile, footwear, leather, and mask. Since 2006, our testing equipment has been in production and successfully entered international markets.
Why Choose Haida?
  • Design & Production: Solution consultation for each order, recommendation of most cost-effective machines, and R&D for special-designed models
  • Shipping & Delivery: One-stop service from production to door delivery, including installation, training, and technical support
  • Warranty: 1 year warranty with lifetime technology support
  • After-Sale Service: 2-hour response time with video inspection and on-site service options
Frequently Asked Questions
Q: How about your warranty?
A: Our standard warranty is one year. During this period, we provide technical support and replacement parts as needed. For complex issues, our engineers may visit your location for service.
Q: What is the order process?
A: Our process includes: Inquiry → Quotation → Requirements confirmation → Order confirmation → Payment → Production → Testing → Packing → Documentation → Delivery → Receiving → After-sales service.
Q: Can we visit your factory before ordering?
A: Yes, we warmly welcome visits and can assist with hotel arrangements and airport transfers.
Q: Do you accept customization service?
A: Absolutely. We offer both standard machines and customized solutions tailored to your specific requirements.
