Thông tin chi tiết sản phẩm:
|
| Đo góc: | 20 °/ 60 °/ 85 ° | Góc: | Nhiệt độ bình thường ~ 200 ° C. |
|---|---|---|---|
| Độ chính xác lan truyền: | ±1%(1℃) Tại-Phòng100℃ | Đang đọc: | KGF, IBF, N, KN, T, v.v. |
| Tốc độ cắt: | 100 ~ 3000mm/phút có thể điều chỉnh | Chiều rộng xử lý tối đa: | 300mm |
| đột quỵ trục vít: | 90 mm | Độ chính xác thời gian: | 0,1s |
| Khối lượng phun tối đa: | 40g | Xi lanh: | Đường kính9.5504 ± 0,0076mm |
| Cân nặng: | Phụ thuộc vào mô hình cụ thể | Phạm vi đường kính ống: | Φ2-2000mm |
| Góc bong tróc: | 90 ° | Phạm vi thời gian: | 0-10000H |
| Khả năng tiêm: | 40*65 cm³ |

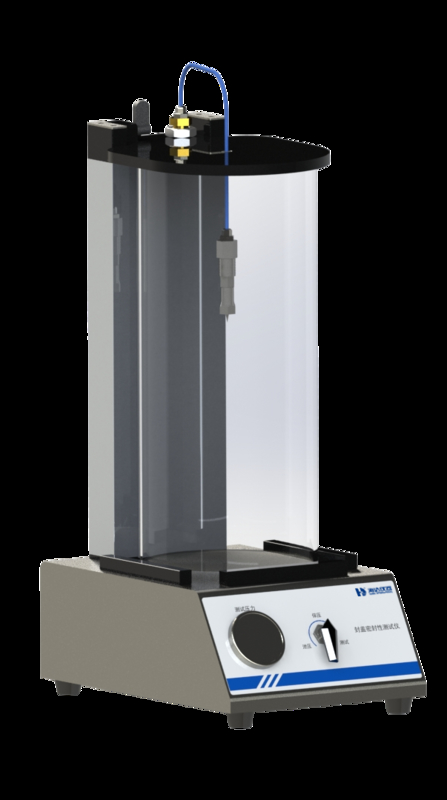

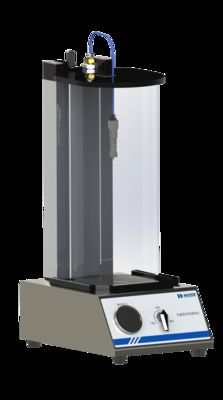

EQUIPMENT DETAILS OF 5082-HD SECURE SEAL TESTER
--Picture for reference only
USAGE
The cap sealing tester is used to test the sealing of bottled and canned beverages to prevent air leakage and effectively control the quality of packaging caps. It is suitable for measuring the sealing of PET bottle products, glass bottle products, canned products, and is also suitable for measuring the sealing of crown caps and PET bottle caps separately
STANDARD SPECIFICATIONS
|
Pressurization |
Compressed air or carbon dioxide is used for inflation and pressurization |
|
Positive pressure measurement |
Avoids the deficiency of negative pressure measurement that the pressure is less than 1 bar |
|
Test pressure range |
0-16bar (1.6Mpa) |
|
Material |
Made of oxidized aluminum, stainless steel and plastic materials, strong and durable |
|
The instrument is equipped with a pressure reducing valve inside to easily set the maximum test pressure; |
|
|
Precise flow control, adjustable pressure increase speed, adjustment range: the time to increase the pressure to 1Mpa can be arbitrarily adjusted in the range of 5-60 seconds |
|
|
Many safety features |
Pressure reducing valve, safety valve, barrel cover safety latch, pressure-opening valve (measurement cannot be started without the test bucket), and exhaust holes on the instrument cover for rapid gas discharge (measurement cannot be started without the barrel cover, and pressure is released immediately after the barrel cover is opened) |
|
Pressure gauge division |
0.05Mpa |
|
Pressure gauge display range |
0-1.6Mpa |
|
Maximum size of the measured sample |
330 * 150mm (height* diameter) |
|
Dimensions |
length 320 * width 380* height 720 mm |
|
Net weight |
15 kg |
Haida International Equipment Co,Ltd
Haida International Equipment Co,Ltd was established in 2004, located in Dongguan city, Guangdong Province, China, is specialized in production and R&D of various material physical properties testing equipment. We have our own independent research and development center and four testing equipment production lines: textile, footwear, leather, mask. In 2006, textile, footwear, leather mask testing equipment officially put into production and entered the international market.
Q: How about your warranty?
A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.
Q: What is the order process?
A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.
Q: Can we visit your factory before order?
A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.
Q: Do you accept customization service?
A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.
