Thông tin chi tiết sản phẩm:
|
| Cỡ mẫu: | 80mm × 300mm | Phạm vi quay: | 0-360 ° |
|---|---|---|---|
| Chiều cao tay vịn: | 650-780mm | Cân nặng: | 150kg |
| Phạm vi thời gian: | 0-999S | lực lượng đóng cửa: | 50+/-5N |
| Đang tải trọng lượng: | 100lb hoặc 225lb | Cảm biến lực: | Cảm biến thương hiệu có độ chính xác cao 7 bộ |
| Tỷ lệ: | 8 ~ 12 lần/phút | Nghị quyết: | 0,1kg, 0,98N, 0,22LB |
| Công suất tải tối đa: | 1000kg | Số lượng chu kỳ: | 1 ~ 500.000 |
| Độ chính xác kiểm tra tĩnh: | ± 0,1% | Phạm vi đo lưu lượng: | 10~100m1/phút |
| chiều cao kiểm tra: | 300-600mm |

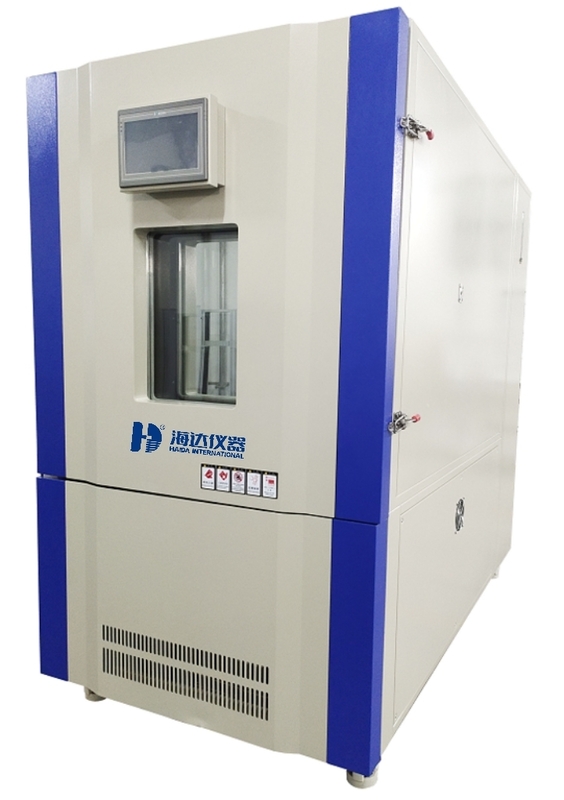

It is used to test VOC (volatile organic compound) emission of various wood-based panel, composite wood flooring, carpet, carpet padding, and other interior decoration materials, also other building materials under constant temperature humidity.
Put sample into 1000L square test chamber, under specify temperature, humidity, air velocity. The VOC and formaldehyde will released from samples and mixed with the air in the chamber, the air will be drawn through the absorption bottle is filled with distilled water, all the formaldehyde in air dissolve in the water; Measure the amount of formaldehyde in the absorption solution and extraction of air volume, and show it by micrograms per cubic meter (mg/m³).
ISO 16000-9 <Part9: Determination of the emission of volatile organic compounds from building products and compounds from building products and furnishing—Emission test chamber method>
EN 16516 <Construction products: Assessments of release of dangerous substances – Determination of emissions into indoor air>
| Item | Specification |
|---|---|
| Inner dimension(W*D*H) | (1±0.02)m3 |
| External dimension(W*D*H) | 1230*2150*2020mm(W*D*H) |
| Test temperature range | (15- 40)℃ (deviation: ±0.5℃, Resolution 0.1℃) Adjustable |
| Humidity range | (30- 80)% R.H. (accuracy:±3%, Resolution 0.1%) Adjustable |
| Background levels |
Formaldehyde≤0.006mg/m³ TVOC≤0.02 mg/m³ Single VOC≤0.002 mg/m³ |
| Air Velocity | 0.1- 2m/s, Adjustable |
| Air replacement rate | 0.5/h |
| Loading factor | 0.4~1.8(m2/m3) |
| Flowmeter | Electronic air flow meter |
| Leakproofness | 1KPa relative pressure, leakage rate＜10-3*1m³/min, import and export air differ＜1% |
| Cooling system | Aspero refrigerating compressor |
| Air supply system | Oil-free air compressor, cold dryer |
| Adiabaticity | The inner walls and doors of chamber shall have effective thermal insulation. |
| Material |
|
| Air collector |
Collector speed: 0.25L/min ~ 2.5L/min, accuracy:±5% Collector time: 99 hours adjustable Equipped with sampling tube, absorption bottle, gas sampler |
| Power | Three-phase, AC380V,50Hz |
| Standard | Test Chamber, sampling tube, absorption bottle |
