Paper Core Radial Crush Test Machine for Compression Strength

Chứng nhận
TRUNG QUỐC Hai Da Labtester Chứng chỉ
TRUNG QUỐC Hai Da Labtester Chứng chỉ
Khách hàng đánh giá
Có chúng tôi đã nhận được máy vào tuần trước. Chúng tôi hiện đang rất bận rộn và tôi chưa thể kiểm tra nó, nhưng nó có vẻ ổn với tôi.

—— Peter Maas

Thay mặt của công ty để thăm các nhà máy và công ty của bạn, các nhân viên kỹ thuật là rất chuyên nghiệp và kiên nhẫn, tôi nghĩ rằng tôi sẽ rất vui khi hợp tác với bạn một lần nữa.

—— Steve Hubbard

Tôi trò chuyện trực tuyến bây giờ

Paper Core Radial Crush Test Machine for Compression Strength

Paper Core Radial Crush Test Machine for Compression Strength
Paper Core Radial Crush Test Machine for Compression Strength Paper Core Radial Crush Test Machine for Compression Strength Paper Core Radial Crush Test Machine for Compression Strength Paper Core Radial Crush Test Machine for Compression Strength Paper Core Radial Crush Test Machine for Compression Strength Paper Core Radial Crush Test Machine for Compression Strength Paper Core Radial Crush Test Machine for Compression Strength

Hình ảnh lớn :  Paper Core Radial Crush Test Machine for Compression Strength

Thông tin chi tiết sản phẩm:
Place of Origin: China
Hàng hiệu: Haida
Chứng nhận: CE、ISO
Model Number: HD-B604-S
Thanh toán:
Minimum Order Quantity: 1 set
Giá bán: Có thể đàm phán
Packaging Details: each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 300 Sets per Month

Paper Core Radial Crush Test Machine for Compression Strength

Sự miêu tả
Chức năng: Kiểm tra nén, kiểm tra cường độ nén ống giấy, thử nghiệm nổ, kiểm tra độ bền kéo, dụng cụ kiểm tra g Tên: Máy kiểm tra cường độ nén ống giấy, dụng cụ kiểm tra giấy GSM TEST/ TESTER SỨC KHỎE, Dụng cụ kiểm tr
Trưng bày: LCD, hiển thị kỹ thuật số Tính năng: Dễ dàng vận hành
Phương pháp hoạt động: Tự động Loại sản phẩm: Công cụ kiểm tra
Thiết bị bảo vệ: Thiết bị bảo vệ loại cảm ứng Điều khiển: Kiểm soát PLC
Phương pháp cảm biến: Máy phát áp suất Dừng lại: Dừng kiểm tra
Độ phân giải lực: 1/500000 lực kiểm tra tối đa FS Chế độ rung: đáp lại
Làm nổi bật:

Compression Strength Test Machine

,

Paper Core Radial Crush Test Machine

HD-B604-S Paper Core Radial Crush Test Machine
Product Overview

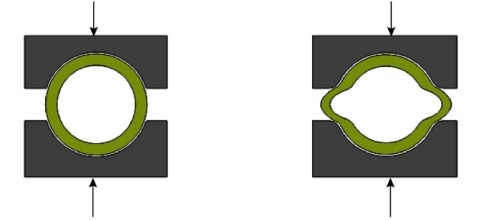

The HD-B604-S measures a paper core's resistance to inward crushing forces, evaluating its ability to maintain structural integrity under stress. This advanced testing instrument combines precision engineering with user-friendly operation for reliable results.
Key Attributes
Function Compression test, Paper Tube Compressive Strength Test, Burst tester, Tensile test, Paper Testing Instrument
Display LCD, Digital display
Operation Method Automatic
Control PLC control
Sensing Method Pressure Transmitter
Force Resolution 1/500000 of the maximum test force fs
Paper Core Radial Crush Test Machine for Compression Strength 0
General Specifications
Packaging Dimensions (W*D*H) 690*1080*1790mm
Power Supply Single-phase, 220V±10%, 50/60Hz (configurable)
Gross Weight 270kg
HS Code 9024800000
Technical Parameters
Load Capacity 5-2000kg (Optional)
Motor 400W servo motor
Driver 400W servo driver
Screw High precision imported ball screw
Control Mode Computerized, Windows mode operation
Test Speed 0.1-500mm/min (Adjustable)
Load Resolution 1/250,000
Load Accuracy ≤0.5%
Unit Switching gf/kgf/N/kN/LBf/T
Dimensions (L*W*H) 880*505*1470mm
Weight 150KG (Approx)
Power 1∮ AC 220V
Advanced Features
  • Integrated testing platform for tensile, deformation, peeling, tearing, and compression tests
  • Comprehensive data analysis including constant tensile stress, elastic modulus, stress and strain
  • Double-pillar ball nut and screw drive for high precision and smooth operation
  • Compact, integrated design suitable for various testing environments
  • Stepless speed adjustment from 1-500mm/min for versatile testing conditions
  • Intelligent safety features including multi-level limit protection, overload protection, and automatic high-speed return
  • Embedded control system with membrane key switch for efficient operation
  • Enhanced data security and reliability with embedded control system
  • Multiple connectivity options with 4 USB ports and 2 network ports
Paper Core Radial Crush Test Machine for Compression Strength 1 Paper Core Radial Crush Test Machine for Compression Strength 2 Paper Core Radial Crush Test Machine for Compression Strength 3
