5104-HD Automatic Condom Thickness Tester for Industrial Use

Chứng nhận
TRUNG QUỐC Hai Da Labtester Chứng chỉ
TRUNG QUỐC Hai Da Labtester Chứng chỉ
Khách hàng đánh giá
Có chúng tôi đã nhận được máy vào tuần trước. Chúng tôi hiện đang rất bận rộn và tôi chưa thể kiểm tra nó, nhưng nó có vẻ ổn với tôi.

—— Peter Maas

Thay mặt của công ty để thăm các nhà máy và công ty của bạn, các nhân viên kỹ thuật là rất chuyên nghiệp và kiên nhẫn, tôi nghĩ rằng tôi sẽ rất vui khi hợp tác với bạn một lần nữa.

—— Steve Hubbard

Tôi trò chuyện trực tuyến bây giờ

5104-HD Automatic Condom Thickness Tester for Industrial Use

5104-HD Automatic Condom Thickness Tester for Industrial Use
5104-HD Automatic Condom Thickness Tester for Industrial Use 5104-HD Automatic Condom Thickness Tester for Industrial Use

Hình ảnh lớn :  5104-HD Automatic Condom Thickness Tester for Industrial Use

Thông tin chi tiết sản phẩm:
Place of Origin: china
Hàng hiệu: HAIDA
Chứng nhận: CE
Model Number: 5104-HD
Thanh toán:
Minimum Order Quantity: 1set
Giá bán: Có thể đàm phán
Packaging Details: each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,T/T,D/P,Western Union,MoneyGram
Supply Ability: 30 Sets per Month

5104-HD Automatic Condom Thickness Tester for Industrial Use

Sự miêu tả
Model: CAM-100 Beamsplitter: Coated KBr
Working Stability: 0.1% of total fluorescence intensity Time Repeatability: 0.01min
Analysis Time: 1-5 minutes Detector: High resolution DTGS detector
Pyrolysis Time Range: 0.01~99.99min Cooling Rate: < 3.5min (450˚C to 50˚C)
Software: CAM Analysis Software Ion Source: EI, EI/CI mixed source, CI (PCI & NCI)
Light Source: Element Lamp Wavelength Range: 190nm-900nm
Detection Object: Solid Instrument Resolution: 144±5eV
Wavenumber Range: 7800~375 cm-1
Làm nổi bật:

5104-HD Automatic Condom

,

High Resolution Automatic Condom Thickness Tester

,

Automatic Condom Thickness Tester

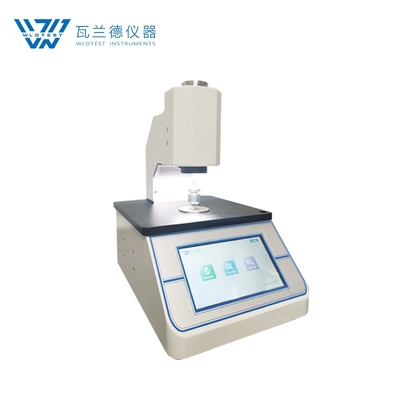

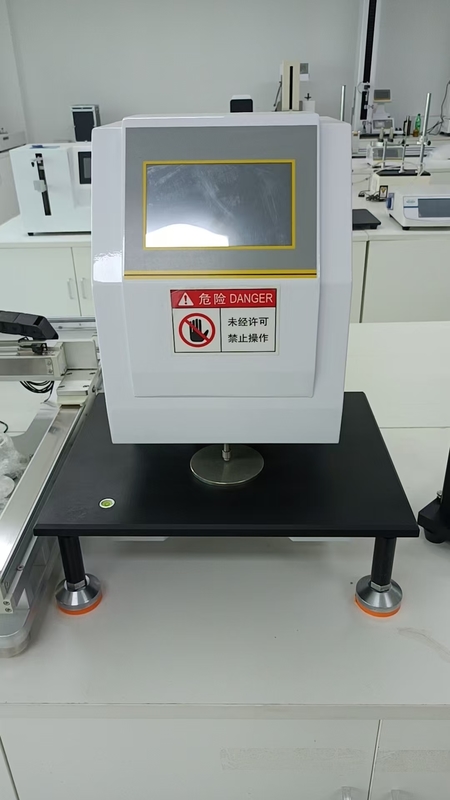

5104-HD AUTOMATIC CONDOM THICKNESS TESTER
PRODUCT DESCRIPTION
The automatic condom thickness tester adopts a mechanical measurement method and is suitable for precise thickness measurement of various materials within the specified range.
DESIGN STANDARD
GB 7544, ISO 4074
FEATURES
  • Measuring head automatically lifts and lowers during testing, eliminating human-induced system errors
  • Includes micro printer for quick printing of measurement results and calculation of size and average values
  • Supports multiple practical functions including real-time data display, automatic statistics, and printing
  • Designed according to standard contact area and measurement pressure, with support for non-standard customizations
  • Includes dedicated automatic sampler for fully automatic multi-point measurement with minimal human error
  • Equipped with standard RS232 interface for external system connections and computer data transmission
TECHNICAL PARAMETERS
Item Description
Test Range 0~5mm
Measuring Pressure 17.5±1kPa
Resolution 0.1 μm
Accuracy ±1μm
Contact area 50mm²
Speed 10 c/min
Power AC 220V 50Hz
Dimension (L*W*H) 450*340*390mm
Weight 30Kg
HAIDA INTRODUCTION
Watch Haida Introduction Video
Founded in 2004, Haida ® is the recognized Dongguan, China market leader in the testing equipment industry, having four main manufacture series: Accelerated Environmental Series (AES), Universal Tensile Machine (UTM), Paper & Packaging (P&P), Foam, Furniture & Optical (FFO), also involved in Textile & Shoes & Leather, Luggage, Baby carriage & toys, and optical testing equipment.
