Thermostatic Valve Test Machine for Cookware ASTM ISO EN Standards

Thermostatic Valve Test Machine for Cookware ASTM ISO EN Standards
Thermostatic Valve Test Machine for Cookware ASTM ISO EN Standards

Hình ảnh lớn :  Thermostatic Valve Test Machine for Cookware ASTM ISO EN Standards

Thông tin chi tiết sản phẩm:
Place of Origin: China
Hàng hiệu: Haida
Chứng nhận: ISO
Model Number: 5071-HD
Thanh toán:
Minimum Order Quantity: 1 set
Giá bán: Có thể đàm phán
Packaging Details: each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash,escrow
Supply Ability: 30 Sets per Month

Thermostatic Valve Test Machine for Cookware ASTM ISO EN Standards

Sự miêu tả
heat source: Ceramic heater touch screen: LCD
Display: LCD screen Testing Time: Adjustable
Steel Impact Hammer: Having a mass of 1KG ±50g Customized: Welcome
Test Cyclic: 15000 cyclic (adjustable) Factory: Yes
Application: Laboratory, Kitchen Transportation: By Sea
Tank Body Matiral: PVC Warranty: 1 year
Test Stoke: 20 to 60 mm (adjustable) Testing Standards: ASTM, ISO, EN
Testing Methods: Impact Test, Heat Resistance Test, Salt Spray Test, Scratch Test, etc. Testing Parameters: Durability, Heat Resistance, Corrosion Resistance, Non-stick Coating Adhesion, etc.
Fixture: two fixtures suitable different cutlery Applicable Standards: EN ISO 8442-5
Clamp Strength: 130 + 2.5N Customer: More than 500+
Leverage Weight: 1KG±0.1KG Weight: Unspecified
Làm nổi bật:

Thermostatic Valve Test Machine

,

Thermostatic Valve Test Machine for Cookware

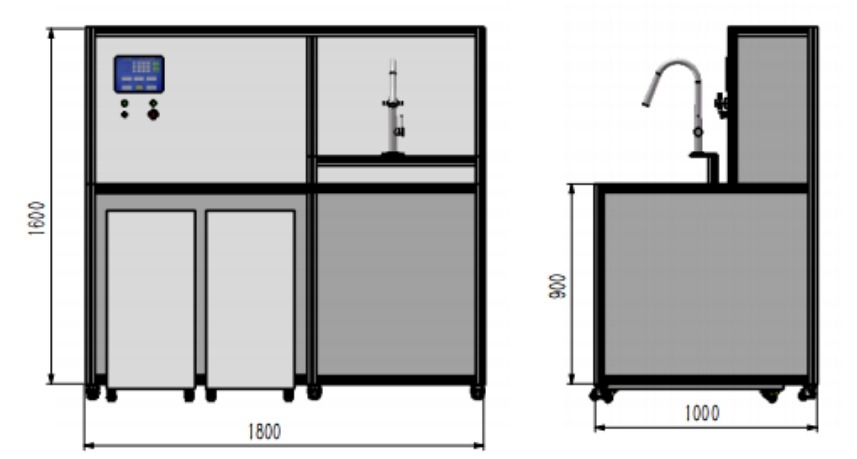

5071-HD SANITARY TAPWARE THERMOSTATIC VALVE PERFORMANCE TEST MACHINE
Product Specifications
Heat SourceCeramic heater
Touch ScreenLCD
DisplayLCD screen
Testing TimeAdjustable
Steel Impact Hammer1KG ±50g mass
CustomizationAvailable
Test Cycles15000 cycles (adjustable)
ManufacturingFactory production
ApplicationLaboratory, Kitchen
TransportationBy Sea
Tank Body MaterialPVC
Warranty1 year
Test Stroke20 to 60 mm (adjustable)
Testing StandardsASTM, ISO, EN
Testing MethodsImpact Test, Heat Resistance Test, Salt Spray Test, Scratch Test
Testing ParametersDurability, Heat Resistance, Corrosion Resistance, Non-stick Coating Adhesion
FixtureTwo fixtures for different cutlery
Applicable StandardsEN ISO 8442-5
Clamp Strength130 + 2.5N
Customer Base500+ satisfied clients
Leverage Weight1KG±0.1KG
Applications & Test Purpose
This equipment is designed according to ASSE1016-2017 and EN1111-2017 standards for testing thermostatic valve water temperature stability, cold water loss during supply, mechanical life, and performance. The system includes a water tank with temperature-controlled hot and cold water through heating and refrigeration systems. Features include water pressure adjustment, flow measurement, and temperature indication.
Standard Features
Test Functions: Thermostatic valve performance test, faucet outlet sensitivity test
Hot and Cold Water Units: 1 set 2000L
Temperature Range: -5~90℃ (adjustable)
Temperature Detection: Inlet and outlet monitoring
Operation Mode: Computerized control
Operating Time: 99H59M59S maximum
Power Supply: 380V/50HZ
Material: SUS304 stainless steel construction
Flow Rate: Maximum 50L/min at 0-8kg pressure
Water Pressure Regulation: Automatic adjustment
Water Pressure Range: 0.1--0.8MPa
Product Images
Thermostatic Valve Test Machine for Cookware ASTM ISO EN Standards 0
Thermostatic Valve Test Machine for Cookware ASTM ISO EN Standards 1
Thermostatic Valve Test Machine for Cookware ASTM ISO EN Standards 2
Thermostatic Valve Test Machine for Cookware ASTM ISO EN Standards 3
Customer Testimonials
Thermostatic Valve Test Machine for Cookware ASTM ISO EN Standards 4
Thermostatic Valve Test Machine for Cookware ASTM ISO EN Standards 5
Why Choose Our Equipment?
  • Design & Production: Custom solution consultation and cost-performance recommendations
  • Shipping & Delivery: Complete one-stop service from production to installation
  • Warranty: 1 year warranty with lifetime technical support
  • After-Sale Service: 2-hour response time with video inspection and on-site support
Frequently Asked Questions
Q: How about your warranty?
A: We offer a 1-year warranty including technical support and replacement parts. On-site engineer service is available when necessary.
Q: What is the order process?
A: Our streamlined process includes inquiry, quotation, order confirmation, production, testing, delivery, and after-sales support.
Q: Can we visit your factory before order?
A: We welcome factory visits and can assist with travel arrangements including airport pickup and hotel booking.
Q: Do you accept customization service?
A: Yes, we specialize in both standard and custom-designed machines tailored to your specific testing requirements.
