Paper Cup Tube Compressive Strength Tester with Digital Display

Paper Cup Tube Compressive Strength Tester with Digital Display
Paper Cup Tube Compressive Strength Tester with Digital Display Paper Cup Tube Compressive Strength Tester with Digital Display

Hình ảnh lớn :  Paper Cup Tube Compressive Strength Tester with Digital Display

Thông tin chi tiết sản phẩm:
Nguồn gốc: Trung Quốc
Hàng hiệu: Haida
Chứng nhận: CE、ISO
Số mô hình: 5099-HD
Thanh toán:
Số lượng đặt hàng tối thiểu: 1 bộ
Giá bán: Có thể đàm phán
chi tiết đóng gói: mỗi bộ được bảo vệ bằng sợi nhựa và màng PP, sau đó được đưa vào hộp gỗ chắc chắn với người vận hành
Thời gian giao hàng: 20 ngày sau khi xác nhận đơn đặt hàng
Điều khoản thanh toán: L/C, D/A, D/P, T/T, Liên minh phương Tây, Moneygram
Khả năng cung cấp: 300 bộ mỗi tháng

Paper Cup Tube Compressive Strength Tester with Digital Display

Sự miêu tả
Chức năng: Kiểm tra nén, kiểm tra cường độ nén ống giấy, thử nghiệm nổ, kiểm tra độ bền kéo, dụng cụ kiểm tra g Tên: Máy kiểm tra cường độ nén ống giấy, dụng cụ kiểm tra giấy GSM TEST/ TESTER TESTER
Trưng bày: LCD, hiển thị kỹ thuật số Đơn vị chuyển đổi: KGF, n. (Tùy chọn), LBF
Chế độ hiển thị: Màn hình LCD, chế độ kỹ thuật số Chế độ rung: qua lại
Động lực chuyển động: Vít bóng và động cơ servo Hỗ trợ tùy chỉnh: OEM ODM
Cách sử dụng: Công cụ kiểm tra giấy Đặc trưng: Độ chính xác cao, hoạt động dễ dàng, hiệu suất đáng tin cậy
Người điều khiển: PLC (Điều khiển logic có thể lập trình) thả thử nghiệm: Các góc, cạnh, mặt của mẫu
phương pháp hiển thị: Hiển thị kỹ thuật số Hiển thị thời gian: Để hiển thị thời gian trong quá trình kiểm tra ( s )
Khu vực Hoa Kỳ: dụng cụ nấu ăn Các tiêu chí thiết kế: EN71 ANSI, UL, ASTM ISTA
Hệ thống điều khiển: Điều khiển lập trình PLC Nguồn gốc: Trung Quốc
Phương pháp thử: Điện tử, cơ học, hướng dẫn sử dụng Cân nặng: Có thể tùy chỉnh
chế độ truyền: Thiết bị nén khí nén + Phân loại giảm + Phát hành Chế độ quét: dòng duy nhất
Sử dụng: Vật liệu đóng gói
Làm nổi bật:

Tube Compressive Strength Tester

,

Digital Display Compressive Strength Tester

,

Paper Cup Tube Compressive Strength Tester

5099-HD Oxygen Transmission Rate Tester

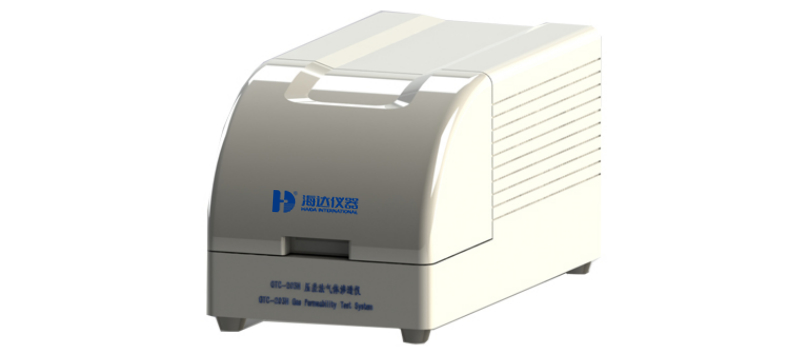

Product Overview
This advanced oxygen transmission rate tester utilizes coulometric oxygen analysis sensors and isobaric test principles to provide high-efficiency oxygen permeability testing for materials with varying gas barrier properties. The system offers precise temperature, humidity, and flow rate control with exceptional test sensitivity and repeatability.
Key Attributes
Function Compression test, Paper Tube Compressive Strength Test, Burst tester, Tensile test, Paper Testing Instrument
Display LCD, Digital display with unit switching (Kgf, N, Lbf)
Control System PLC (Programmable Logic Controller)
Movement Drive Ball screw and servo motor
Vibration Mode Reciprocating
Design Standards EN71, ANSI, UL, ASTM, ISTA
Test Methods Electronic, mechanical, manual
Transmission Mode Pneumatic device + reducer + release
Technical Features
  • Three independent test chambers for simultaneous testing of different samples
  • Imported high-precision sensors ensure exceptional test accuracy
  • Advanced water bath temperature control system with wide temperature range
  • Independent control of upper/lower chambers and sensors for result accuracy
  • Sealed pipeline system reduces system errors for more precise results
  • Anti-leakage sample structure design for stable sealing
  • Multiple test modes (manual, proportional, cyclic) for various scenarios
  • Expandable USB interfaces and network ports for data access
  • Self-detection capabilities ensure continuous operational status
  • Power-off automatic save function prevents data loss
Technical Specifications
Measuring Range Film: 0.01-200cm³/m²*24h (conventional)
Container: 0.00025-1 cm³/pkg*24h (optional)
Resolution 0.001 cm³/m²•24h
Temperature Control 5°C to 85°C (±0.1°C accuracy)
Humidity Control 0% RH, 5%-90%RH, 100%RH (±1%RH accuracy)
Sample Capacity 1-3 pieces (independent data)
Transmission Area 50 cm²
Max Sample Thickness ≤3mm
Carrier Gas 99.999% high purity nitrogen (user-provided)
Dimensions 740mm (L) × 415mm (W) × 430mm (H)
Weight 50Kg
Power Supply AC 220V 50Hz
Compliance Standards
GB/T 19789, ISO 15105-2, ASTM D3985, ASTM F2622, ASTM F1927, JIS K7126-2, YBB 00082003
Applications
Ideal for oxygen permeability testing of films, sheets, paper, and packaging materials in food, pharmaceuticals, medical devices, cosmetics, photovoltaic electronics, and related industries.
Product Images
Paper Cup Tube Compressive Strength Tester with Digital Display 0 Paper Cup Tube Compressive Strength Tester with Digital Display 1 Paper Cup Tube Compressive Strength Tester with Digital Display 2
About Haida
Haida products are extensively utilized across diverse industries including paper goods, packaging, ink printing, adhesive tapes, bags, footwear, leather goods, environmental protection materials, toys & baby products, hardware, electronics, plastics, and rubber. They are equally suitable for all research institutions, quality inspection agencies, and academic fields. Our products comply with UL, ASTM, JIS, GB, and ISO standards.
