5093-HD Film Coefficient Friction Tester for Paper Packaging Testing

5093-HD Film Coefficient Friction Tester for Paper Packaging Testing
5093-HD Film Coefficient Friction Tester for Paper Packaging Testing

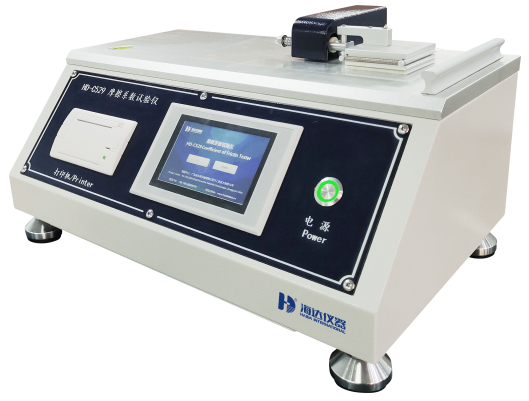

Hình ảnh lớn :  5093-HD Film Coefficient Friction Tester for Paper Packaging Testing

Thông tin chi tiết sản phẩm:
Nguồn gốc: Trung Quốc
Hàng hiệu: Haida
Chứng nhận: CE、ISO
Số mô hình: 5093-HD
Thanh toán:
Số lượng đặt hàng tối thiểu: 1 bộ
Giá bán: Có thể đàm phán
chi tiết đóng gói: mỗi bộ được bảo vệ bằng sợi nhựa và màng PP, sau đó được đưa vào hộp gỗ chắc chắn với người vận hành
Thời gian giao hàng: 20 ngày sau khi xác nhận đơn đặt hàng
Điều khoản thanh toán: L/C, D/A, D/P, T/T, Liên minh phương Tây, Moneygram
Khả năng cung cấp: 300 bộ mỗi tháng

5093-HD Film Coefficient Friction Tester for Paper Packaging Testing

Sự miêu tả
Chức năng: Kiểm tra nén, kiểm tra cường độ nén ống giấy, thử nghiệm nổ, kiểm tra độ bền kéo, dụng cụ kiểm tra g Tên: Máy kiểm tra cường độ nén ống giấy, dụng cụ kiểm tra giấy GSM TEST/ TESTER TESTER
Trưng bày: LCD, hiển thị kỹ thuật số Đơn vị chuyển đổi: KGF, n. (Tùy chọn), LBF
Chế độ hiển thị: Màn hình LCD, chế độ kỹ thuật số Chế độ rung: qua lại
Động lực chuyển động: Vít bóng và động cơ servo Phạm vi biên độ: 25,4 mm pp (1 inch)
Hỗ trợ tùy chỉnh: OEM ODM Cách sử dụng: Công cụ kiểm tra giấy
Phạm vi kiểm tra: 0-2000 kPa Đặc trưng: Độ chính xác cao, hoạt động dễ dàng, hiệu suất đáng tin cậy
Dung tích: 2000kg Phạm vi tần số: 60-300 vòng/phút có thể điều chỉnh
Người điều khiển: PLC (Điều khiển logic có thể lập trình) thả thử nghiệm: Các góc, cạnh, mặt của mẫu
chiều cao xi lanh: 50mm Phạm vi đo lường: 0. 1 μ G-200MGH2O (2ppm ~ 100%)
Sử dụng: Máy kiểm tra độ cứng bìa Cung cấp điện: Điện xoay chiều 220V 50HZ
chức năng: Giữ đỉnh phương pháp hiển thị: Hiển thị kỹ thuật số
Hiển thị thời gian: Để hiển thị thời gian trong quá trình kiểm tra ( s )
Làm nổi bật:

Friction Tester for Paper Packaging Testing

,

Film Coefficient Friction Tester

,

Film Coefficient Friction Tester

EQUIPMENT DETAILS FOR 5093-HD FILM COEFFICIENT FRICTION TESTER
Product Attributes
Attribute Value
Function compression test, Paper Tube Compressive Strength Test, Burst tester, tensile test, Paper Testing Instrument
Name paper cup tube compressive strength tester, Paper testing instrument paper gsm tester/ bursting strength tester, paper testing instrument
Display LCD, Digital display
Units switch Kgf, N. (Optional), Lbf
Display mode LCD display, digital mode
Vibration Mode reciprocating
Movement Drive ball screw and servo motor
Amplitude Range 25.4 mm P-P(1 inch)
Customized Support OEM ODM
Usage Paper Testing Instrument
Test Range 0-2000 kPa
Features High precision, easy operation, reliable performance
Capacity 2000KG
Frequency Range 60-300 round/min adjustable
Controller PLC (programmable logic controller)
Drop Test Corners, edges, faces of sample
Cylinder Height 50 mm
Measuring Range 0.1 μg-200mgH2O (2ppm~100%)
Use paperboard stiffness test machine
Power Supply AC 220V 50Hz
Function Peak hold
Display Method digital display
Time Display To display time during test (s)
Product Description

This tester complies with GB 10006-88 and ISO 8295-1986 standards. It measures dynamic and static friction coefficients of non-sticky plastic films and sheets (thickness <0.2mm) when sliding on themselves or other materials. Also suitable for paper, textiles, rubber, aluminum foil, printed materials, and screen protective films. The friction coefficient measurement indicates product smoothness.

Testing Standards

GB 10006-88, ISO 8295-1986

Features
Hardware Features
  • Stepper motor components ensure superior position accuracy and motion repeatability
  • Dual guide rails and dual linear bearings provide accurate positioning, smooth movement, quiet operation, and easy maintenance
  • Paint-sprayed exterior offers high rust resistance and attractive appearance
Software Features
  • Touch screen control for easy operation and improved test efficiency
  • Built-in direct thermal line printer for immediate test result printing
  • Travel limit protection and fault alarm prompts ensure safe operation
Operation Principle

The touch screen controls the stepper motor driver, which executes programmed movements. The motor drives the force value test module for uniform linear motion. Samples are secured under the handle on the weight module. During testing, the force value test module moves uniformly, calculating the friction coefficient, with results printed by the built-in printer.

Standard Features
Specifications 5093-HD
Control mode touch screen control
Test stroke 1-200mm
Test speed 100±10mm/min (speed adjustable)
Slider weight 200±2g (others can be customized)
Upper sample size 63mm*63mm (L*W)
Lower sample size 80mm*200mm (L*W)
Force test accuracy ±0.02N
Measuring range 0.001-5N (expandable)
Instrument dimensions Approx. 490*320*210mm (L*W*H)
Usage environment indoor temperature 20±10℃, relative humidity <85%
Power supply 1∮ AC220V
Machine weight Approx. 18kg
Power Approx. 350W
Main test items Determination of sliding static friction coefficient and dynamic friction coefficient of materials such as plastic film and paper

About Haida: Haida products serve diverse industries including paper goods, packaging, ink printing, adhesive tapes, bags, footwear, leather goods, environmental protection materials, toys & baby products, hardware, electronics, plastics, and rubber. Suitable for research institutions, quality inspection agencies, and academic fields. Complies with UL, ASTM, JIS, GB, and ISO standards.

5093-HD Film Coefficient Friction Tester for Paper Packaging Testing 0 5093-HD Film Coefficient Friction Tester for Paper Packaging Testing 1 5093-HD Film Coefficient Friction Tester for Paper Packaging Testing 2
