Digital Pendulum Impact Tester for Film and Paper Packaging

Chứng nhận
TRUNG QUỐC Hai Da Labtester Chứng chỉ
TRUNG QUỐC Hai Da Labtester Chứng chỉ
Khách hàng đánh giá
Có chúng tôi đã nhận được máy vào tuần trước. Chúng tôi hiện đang rất bận rộn và tôi chưa thể kiểm tra nó, nhưng nó có vẻ ổn với tôi.

—— Peter Maas

Thay mặt của công ty để thăm các nhà máy và công ty của bạn, các nhân viên kỹ thuật là rất chuyên nghiệp và kiên nhẫn, tôi nghĩ rằng tôi sẽ rất vui khi hợp tác với bạn một lần nữa.

—— Steve Hubbard

Tôi trò chuyện trực tuyến bây giờ

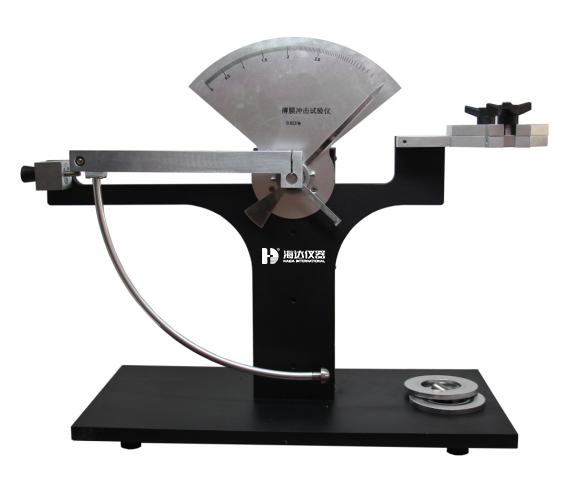

Digital Pendulum Impact Tester for Film and Paper Packaging

Digital Pendulum Impact Tester for Film and Paper Packaging
Digital Pendulum Impact Tester for Film and Paper Packaging Digital Pendulum Impact Tester for Film and Paper Packaging Digital Pendulum Impact Tester for Film and Paper Packaging Digital Pendulum Impact Tester for Film and Paper Packaging Digital Pendulum Impact Tester for Film and Paper Packaging Digital Pendulum Impact Tester for Film and Paper Packaging

Hình ảnh lớn :  Digital Pendulum Impact Tester for Film and Paper Packaging

Thông tin chi tiết sản phẩm:
Nguồn gốc: Trung Quốc
Hàng hiệu: Haida
Chứng nhận: CE、ISO
Số mô hình: 5086-HD
Thanh toán:
Số lượng đặt hàng tối thiểu: 1 bộ
Giá bán: Có thể đàm phán
chi tiết đóng gói: mỗi bộ được bảo vệ bằng sợi nhựa và màng PP, sau đó được đưa vào hộp gỗ chắc chắn với người vận hành
Thời gian giao hàng: 20 ngày sau khi xác nhận đơn đặt hàng
Điều khoản thanh toán: L/C, D/A, D/P, T/T, Liên minh phương Tây, Moneygram
Khả năng cung cấp: 300 bộ mỗi tháng

Digital Pendulum Impact Tester for Film and Paper Packaging

Sự miêu tả
Chức năng: Kiểm tra nén, kiểm tra cường độ nén ống giấy, thử nghiệm nổ, kiểm tra độ bền kéo, dụng cụ kiểm tra g Tên: Máy kiểm tra cường độ nén ống giấy, dụng cụ kiểm tra giấy GSM TEST/ TESTER TESTER
Trưng bày: LCD, hiển thị kỹ thuật số Đơn vị chuyển đổi: KGF, n. (Tùy chọn), LBF
Bóng thép: 16mm * 20 Phạm vi tần số: 60-300 vòng/phút có thể điều chỉnh
Chế độ ổ đĩa: động cơ Tổng trọng lượng: 120Kg
Màu sắc: Không bắt buộc Tốc độ kẹp: 50-300mm/phút
Phần mềm: TM 2101 Kích thước: 530 (l)* 490 (d)* 960 (h) mm
Tốc độ kiểm tra: 12,7 mm/phút tốc độ ma sát: 85
Lực lượng giải quyết: 1/500000 lực kiểm tra tối đa FS Quyền lực: AC 220V , 2.6A
Sử dụng: Vật liệu đóng gói Kích thước ván ép: H48in * D48in
Cổng: 400 ~ 1500 mm
Làm nổi bật:

Paper Packaging Impact Tester

,

Digital Pendulum Impact Tester

,

Precision Digital Pendulum Impact Tester

5086-HD Film Pendulum Impact Tester
Product Overview

The 5086-HD Film Pendulum Impact Tester measures the pendulum impact resistance of plastic films, sheets, and composite films using a standard pendulum head and weighted pendulum arm. Ideal for testing impact toughness of various packaging materials including food and medicine packaging films, metal foils, and paper composites.

Key Features
  • Measures impact resistance of plastic films, composite films, and packaging materials
  • Suitable for testing paper and paperboard impact resistance
  • Digital LCD display for precise measurements
  • Adjustable frequency range (60-300 round/min)
  • Multiple unit options (Kgf, N, Lbf)
  • Power-driven operation for consistent testing
Technical Specifications
Attribute Value
Function Compression test, Paper Tube Compressive Strength Test, Burst tester, Tensile test
Display LCD, Digital display
Units switch Kgf, N. (Optional), Lbf
Steel Ball 16mm * 20
Frequency Range 60-300 round/min adjustable
Drive Mode Power-driven
Gross Weight 120kg
Clamping Speed 50-300mm/min
Test Speed 12.7mm/min
Force Resolution 1/500000 of the maximum test force fs
Power AC 220V,2.6A
Dimensions 530(L)*490(D)*960(H)mm
Testing Parameters
Parameter Specification
Capacity 3J
Scale value 0.01J
Pendulum swing radius R280 mm
Pendulum angle 90°
Impact speed 2.5m/S
Impact head size Φ12.7 mm
Sample holder diameter Φ60, Φ89mm
Sample size 100 X 100 mm
Design Standards

Complies with GB/T8809 and ASTM D3420 testing standards.

Applications

Ideal for testing impact resistance of various materials including PE/PP composite films, aluminized films, aluminum-plastic composite films, nylon films, plastic rubber films, metal foil materials, and paper/paperboard composites used in packaging applications.

Testing Principle

The instrument uses a semi-spherical punch to impact and break the sample at a controlled speed, measuring the energy consumed during impact to evaluate the material's anti-pendulum impact energy value.

Product Images

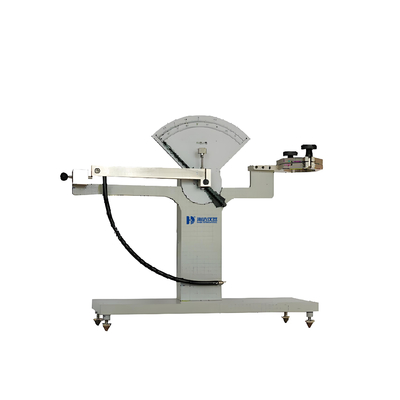

Digital Pendulum Impact Tester for Film and Paper Packaging 0
Haida Bottle Compression Test Machine

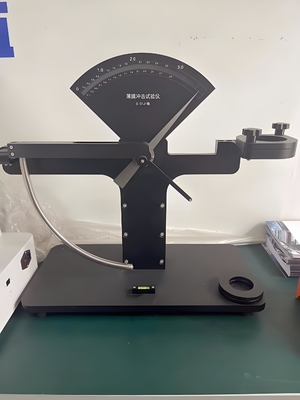

Digital Pendulum Impact Tester for Film and Paper Packaging 1
Haida Testing Equipment

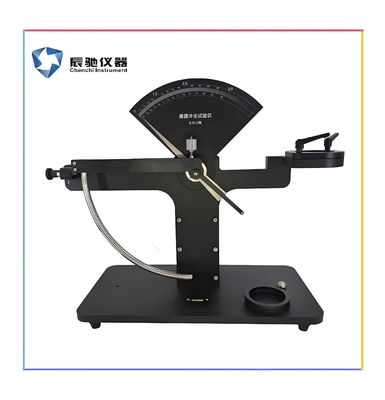

Digital Pendulum Impact Tester for Film and Paper Packaging 2
Haida Laboratory Testing Machine
About Haida

Haida products are extensively utilized across diverse industries including paper goods, packaging, ink printing, adhesive tapes, bags, footwear, leather goods, environmental protection materials, toys & baby products, hardware, electronics, plastics, and rubber. They are equally suitable for all research institutions, quality inspection agencies, and academic fields. Our products comply with UL, ASTM, JIS, GB, and ISO standards.
