Thông tin chi tiết sản phẩm:
|
khung: | 1 khung với thanh ngang và tấm đế 1200mm ×1200 mm, dày 12mm, thép mạ kẽm | Trục thử quay: | 1 trục thử điện động cho vòng quay của núm xoay, điều khiển vị trí, góc quay +/- 360° |
---|---|---|---|
Trục kiểm tra khí nén: | 1 trục kiểm tra khí nén cho ghế, kiểm soát tải trọng, đường kính vị trí 80mm, hành trình 500mm | Trọng lượng: | Cảm biến Tải trọng 122 kg (270 lb.) . Tải trọng được truyền thẳng đứng đến ghế với phạm vi điều chỉn |
Làm nổi bật: | 270lb Office Chair Durability Test Machine,Electrical Office Chair Swivel Durability |

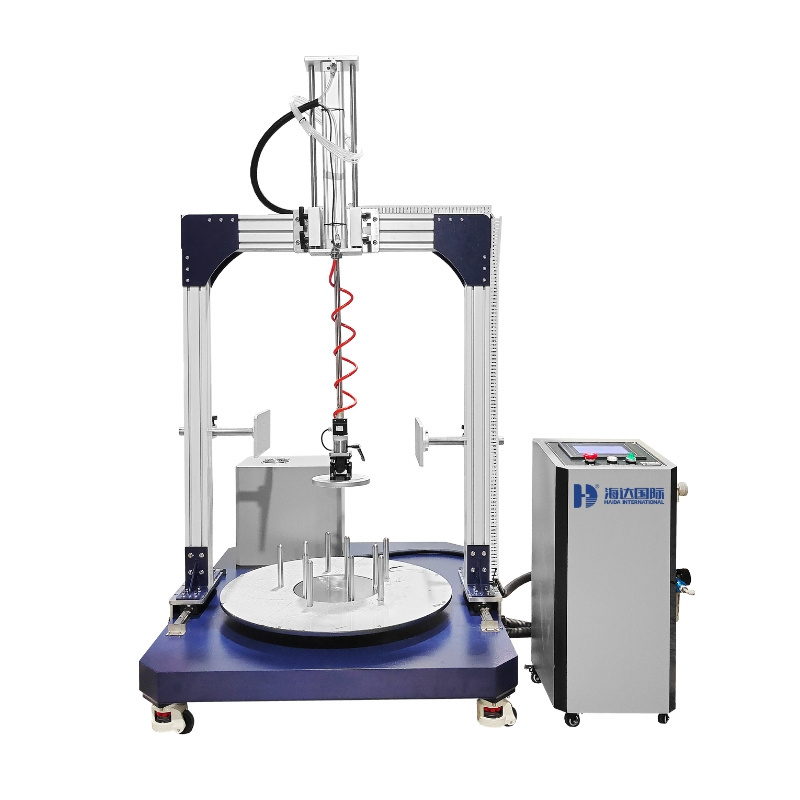

Electrical BIFMA X5.1 270lb Electrical Office Chair Swivel Durability Test Machine
EQUIPMENT DESCRIPTION
Test rig for rotation testing on seating furniture according to BIFMA X5.1, load controlled with loading pad. The pneumatic test axis operates from PLC.
GENERL SPECIFICATIONS
Machine Dimensions: (W x D x H) 1680*890*1840mm
Power supply source: single-phase, AC220V±10%, 50/60Hz (can be appointed)
Gross Weight: 400kg
STANDARD FEATURES
Framework | 1 framework with traverse member and base plat 1200mm ×1200 mm , 12mm thick, galvanized steel |
Rotation test axis | 1 electromotive test axis for the rotation of the turning knob, position-controlled, rotation angle +/- 360° |
Pneumatic test axis | 1 pneumatic test axis for seat, load controlled, position diameter 80mm, stroke 500mm |

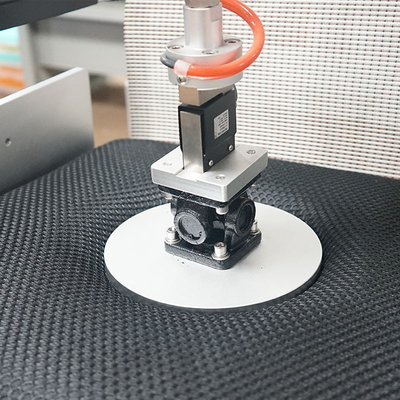

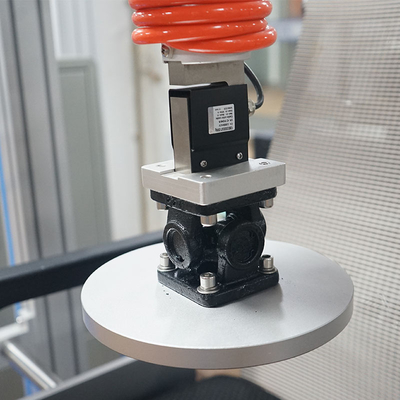

Load | Load Cell 122 kg (270 lb.) . Load is transmitted vertically to the seat with lateral adjusting range |
Limit Control | Operating pressure and cylinder limit switch control |
Emergency Button | 1 emergency button |
Number and Cycles | Can be set by PLC ( 0- 99,999) |
Accessories (Optional) | 1 load pad diameter 200mm DIN EN 1335 |
APPLICATION STANDARDS:
BIFMA X5.1-2017
Reference Doc: BIFMA X5.1-2017 Swivel Test
Chair Test Step
For all chairs, continue the test for an additional 60,000 cycles to a total of 120,000 cycles.
