Thông tin chi tiết sản phẩm:
|
| Chế độ tạo Ozone: | Máy tạo ozone hoặc phương pháp hấp thụ tia cực tím | Chế độ kiểm tra a: | Nhiệt độ phòng |
|---|---|---|---|
| phân tán: | Số | Bài kiểm tra tốc độ: | Điều chỉnh |
| sản phẩm: | thiết bị kiểm tra cao su | Phương pháp kiểm soát: | Kiểm tra tự động máy tính |
| Phạm vi nhiệt độ: | Nhiệt độ bình thường ~ 200oC | điện sưởi ấm điện: | AC220V ± 10%50HZAC220V ± 10%50Hz |
| Tiêu chuẩn kiểm tra: | ASTM, ISO, GB, JIS, v.v. | ||
| Làm nổi bật: | Haidathermal Conductivity Tester,surface temperature Thermal Conductivity Tester,Hot Disk Thermal Conductivity Tester |
||

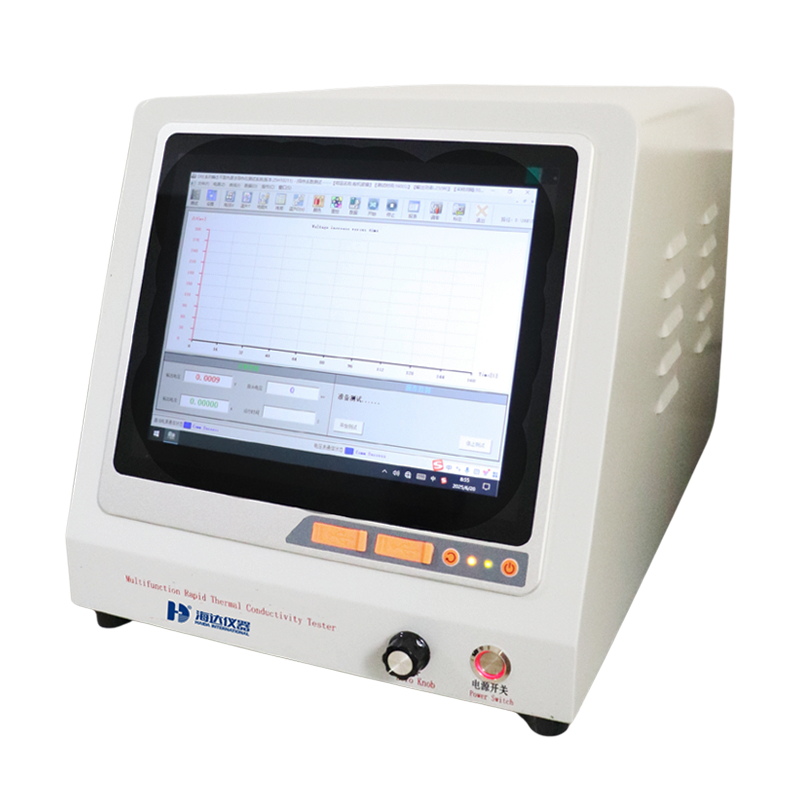

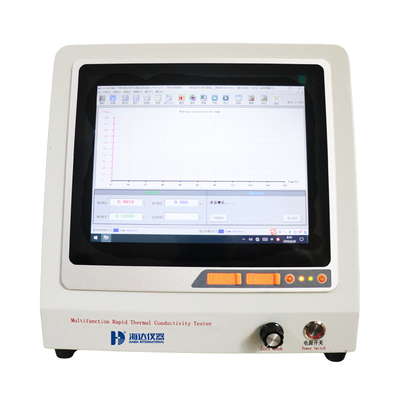

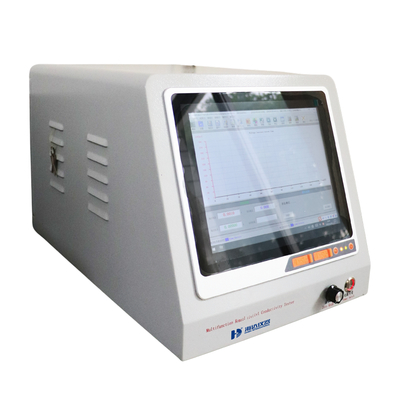

The thermal conductivity tester adopts the transient plane heat source method, based on TPS transient plane heat source technology, and uses a Hot Disk probe. It can be used to test the thermal conductivity, thermal conductivity (thermal diffusion coefficient), specific heat capacity, thermal storage coefficient and thermal resistance of metals, alloys, graphite, thermal grease, silicone, silicone rubber, ceramics, rock and soil, rocks, polymers, paper, fabrics, foam plastics, concrete, composite panels, paper honeycomb panels and other solids, powders, liquids, pastes, coatings, films, thermal insulation materials, insulation materials, anisotropic materials, etc.
Technical Paramet
|
Item
|
Parameters
|
|
Thermal conductivity range
|
0.001~500 w/(m.k), resolution 0.0001w/(m.k)
|
|
Thermal diffusion coefficient range
|
0.1~100m2/s
|
|
Thermal storage coefficient range
|
0.1~30w/(m2.k)
|
|
Specific heat capacity range
|
0.1~5kJ/(kg.ºC)
|
|
Thermal resistance range
|
0.5~0.000005mm2.k/w
|
|
Temperature measuring accuracy
|
≤0.0001ºC
|
|
Measurement relative error
|
≤3%
|
|
Repeatability error
|
≤3%
|
|
Measuring time
|
1~120 seconds
|
|
Sample test temperature range
|
Room temperature
(Various high and low temperature control chamber or test states under vacuum can be optional according to customer requirements) |
|
Probe
|
Φ15mm
|
|
Various sample tests
|
a. Solid block or round, square, or special-shaped samples do not require special preparation, only a relatively flat sample
surface is required, and a special sample clamping device is provided. b. There are no special requirements for powder, paste, or liquid substances, and a special sample test box is provided. c. For thinner materials (thickness 0.01-1mm), special test plans and mathematical models are used for testing. d. For high-conductivity materials (100-500W), special test plans and mathematical models are used for testing. e. For thermal insulation materials (0.010-0.050W), special test plans and mathematical models are used for testing. |
|
Control mode
|
Fully automatic test software, fast and accurate analysis of sample test process parameters and report output
|
|
Machine dimension
|
(L*W*H)380*40*450mm
|
|
Machine weight
|
Approx. 20KG
|
|
Power
|
AC 220V±10%, 50/60 Hz, 500W
|
