Thông tin chi tiết sản phẩm:
|
| Phạm vi mô -men xoắn: | 0-200MV | kiểm soát nhiệt độ: | Trong vòng 70 ± 1 hoặc 100 ± 1 đến nhiệt độ phòng |
|---|---|---|---|
| Kích thước: | 550x440x690 mm | Quyền lực: | AC 220V |
| Cung cấp không khí: | 0,6MPa | Chiều dài bánh xe lăn: | 460mm |
| Chế độ kiểm tra a: | Nhiệt độ phòng | Phạm vi kiểm tra: | Phạm vi đầy đủ: 0,55-500mm |
| trạm kiểm tra: | 3 | Lỗi hiển thị nhiệt độ: | 1℃ |
| thời gian tiêm: | 0-9999S [điều chỉnh] | Vật chất Vận tốc âm thanh: | 1000-9999m/giây |
| Năng lượng sưởi ấm: | 4kW | phân tán: | Điện tử |
| Đặc điểm kỹ thuật: | 20-88HRA, 20-100HRB, 20-70HRC |

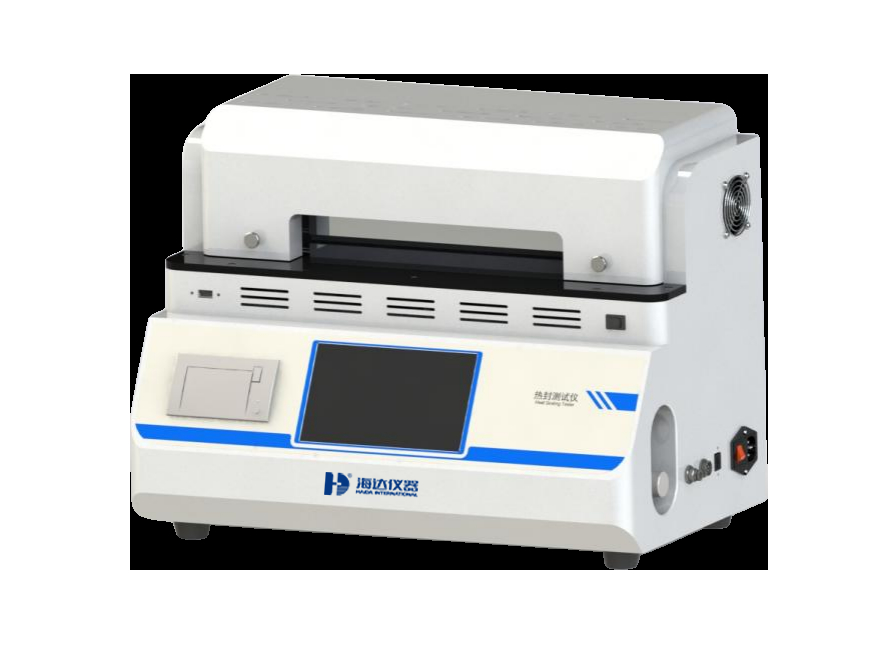

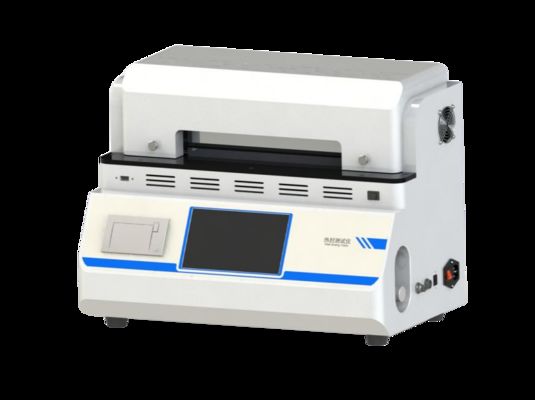

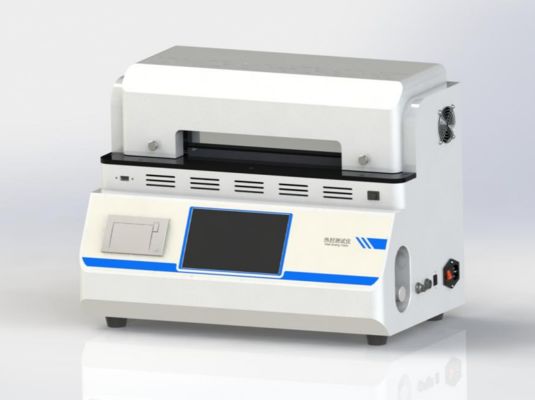

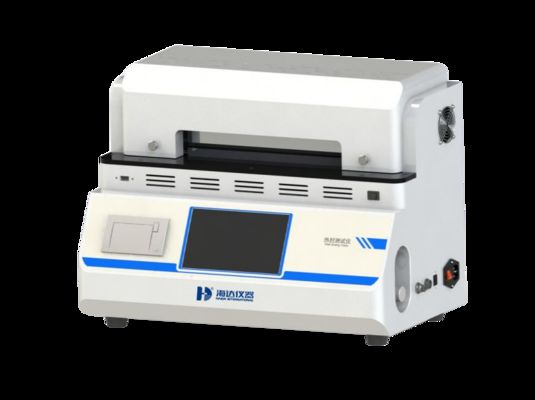

EQUIPMENT DETAILS OF 5089-HD HEAT SEALING TESTER
PRODUCT DECRIPTION
It adopts the testing principle of heat-pressing sealing method and is suitable for measuring the heat-sealing pressure, heat-sealing temperature and heat-sealing time of flexible packaging composite films, plastic film substrates, coated paper and other heat-sealing composite films. It is an indispensable testing instrument in laboratories, scientific research and online production. It is also called heat-sealing strength tester, heat-sealing performance tester and heat-sealing strength tester.
TEST STANDARD
ASTM F2029, QB/T 2358, YBB 00122003
PRINCIPLE
The instrument adopts the heat-pressing sealing method. The sample to be sealed is placed between the upper and lower heat-sealing heads. The sample is sealed at the preset temperature, pressure and time. By heat-sealing the sample under different test conditions such as temperature, pressure and time, the appropriate packaging process for the sample can be obtained.
FEATURE
1. Industrial-grade high-definition color resistive touch screen, menu-based interface, conv1. Industrial-grade high-definition color resistive touch screen, menu-based interface, convenient for users to control and display real-time test data;
2. The heat sealing temperature is controlled by digital PID, which effectively improves the temperature control accuracy and heating rate;
3. Aluminum potting armor type heat sealing head design ensures the uniformity of heating of the whole heat sealing surface;
4. The design of the lower-mounted double-cylinder synchronization circuit not only ensures the stability in the operation of the instrument, but also effectively avoids the pressure fluctuation caused by heat;
5. The upper and lower heat sealing heads can be independently temperature-controlled, and the ultra-long heat sealing surface design meets the user's large-area sample or multiple samples for simultaneous testing;
6. Supports customized requirements for various heat sealing surface forms to meet the personalized needs of different customers;
7. Two test start modes, manual and foot pedal, and anti-scalding safety design, can effectively ensure the convenience and safety of users;
8. All system accessories use well-known brand components to ensure the accuracy and stability of the system;
9. Imported high-speed and high-precision sampling chips to ensure the real-time and accuracy of test data;
10. Multi-level user authority settings, test data integrity and other functions to meet GMP-related test requirements;
11. Support historical data for quick viewing;
12. The equipment is equipped with a micro printer to print test data in real time;
13. Professional computer communication software (optional) can display the test process in real time and analyze and process group data ;
TECHNICAL PARAMETERS
|
Item |
Description |
|
Heat sealing temperature |
RT+10~250℃ |
|
Heating sealing pressure |
100~700 Kpa |
|
Heating sealing time |
0.1~999.9s |
|
Temperature control accuracy |
±0.5℃ |
|
Temperature resolution |
0.1℃ |
|
Heating sealing surface(L*W) |
300mmx10mm (Other sizes can be customized ) |
|
Heating method |
Single heating or double heating (Can be controlled independently) |
|
Air pressure |
≤0.7MPa (user-supplied) |
|
Air source interface |
Φ6 mm polyurethane tube |
|
Machine Dimension(L*W*H) |
448mm (L)*338 mm (W)*425 mm (H) |
|
Net weight |
Around 45kg |
|
Power |
1-PH, AC 220V,50Hz |
Haida International Equipment Co,Ltd
Haida International Equipment Co,Ltd was established in 2004, located in Dongguan city, Guangdong Province, China, is specialized in production and R&D of various material physical properties testing equipment. We have our own independent research and development center and four testing equipment production lines: textile, footwear, leather, mask. In 2006, textile, footwear, leather mask testing equipment officially put into production and entered the international market.
Q: How about your warranty?
A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.
Q: What is the order process?
A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.
Q: Can we visit your factory before order?
A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.
Q: Do you accept customization service?
A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.
