EQUIPMENT DETAILS OF 5087-HD FLIM SHRINKAGE TESTER

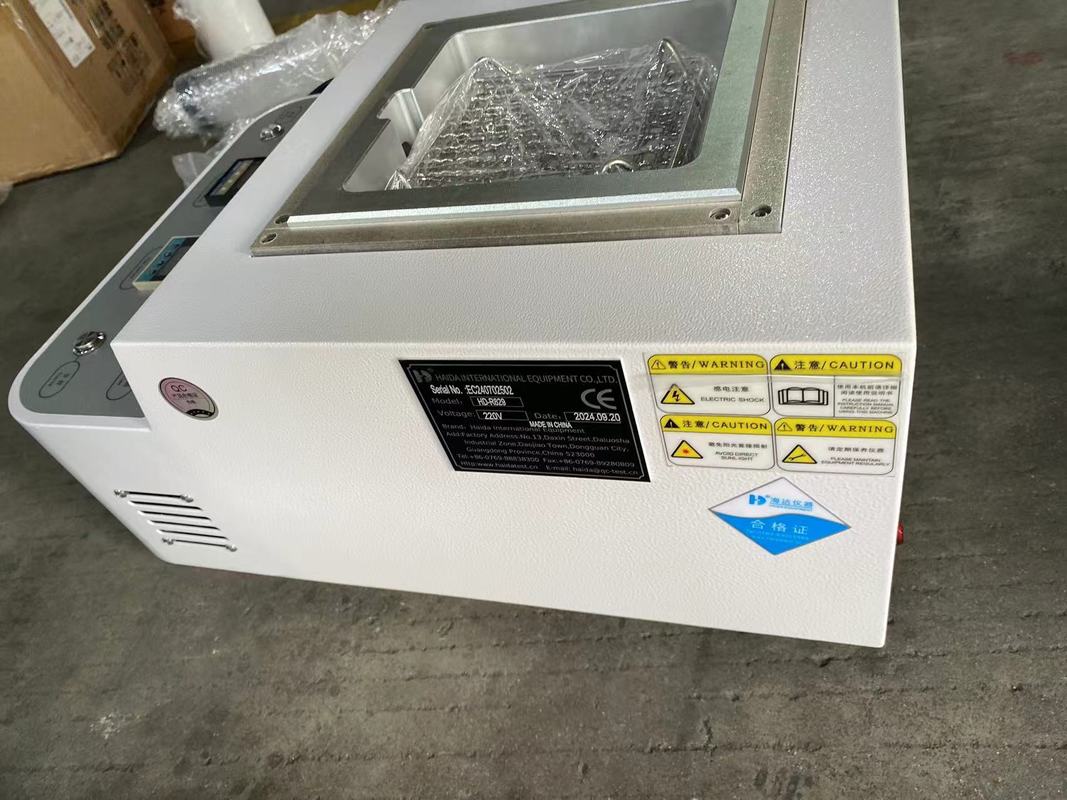

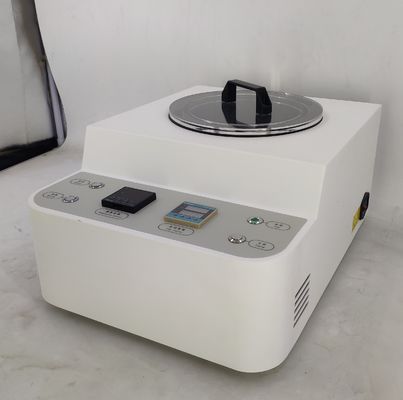

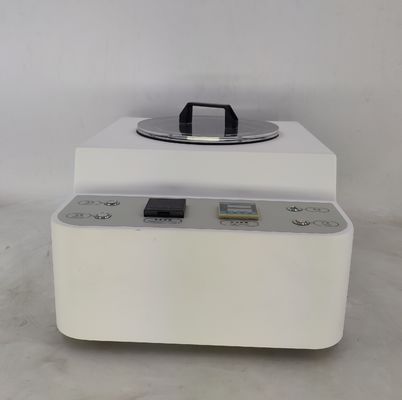

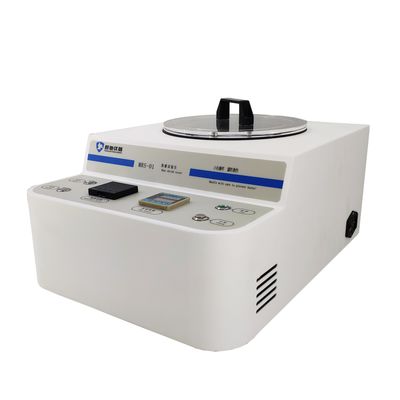

***Picture for reference***
PRODUCT DECRIPTION
This machine is suitable for testing the thermal shrinkage performance of materials, suitable for testing the thermal shrinkage performance of various films in liquid medium at a variety of temperatures, such as wine, cans, mineral water, a variety of beverages, the overall collection of packaging with PE thermal shrinkage film, As well as PVC, POF, OPS, PET and other suitable for a variety of packaging shrinkage film, flexible packaging composite film, PVC polyvinyl chloride hard sheet, solar cell back plate and other materials with heat shrinkage performance.
STANDARD
GB/T 13519,ASTM D2732,YBB00292004-2015,YBB00212005-2015,YBB00232005-2015,YBB00222005-2015,YBB00202005-2015
PRINCIPLE
The instrument accurately controls the temperature of the heat-carrying oil in the heating tank, cuts the sample into a certain size, puts it into the heating tank for a certain period of time, takes out the sample after the time is up, measures the size of the sample after cooling to room temperature, and calculates the thermal shrinkage rate.
STANDARD FEATURES
|
Item |
Description |
|
Temperature control accuracy |
±0.3℃ |
|
Relative humidity |
50%±5% |
|
Measurement range |
≤140mm×140mm |
|
Temperature range |
--200℃(inside) |
|
Heating medium |
oil bath |
|
Dimensions |
480 (L) ×360 (W) ×270 (H) mm |
|
Weight |
18kg |
|
Relative humidity |
50%±5% |
|
Working environment |
23℃±2℃; |
|
Power |
220V, 50HZ |
|
Standard configuration |
host, sample tray, sample clip, heat conduction oil, sampling knife, sampling standard ruler; |
Haida International Equipment Co,Ltd
Haida International Equipment Co,Ltd was established in 2004, located in Dongguan city, Guangdong Province, China, is specialized in production and R&D of various material physical properties testing equipment. We have our own independent research and development center and four testing equipment production lines: textile, footwear, leather, mask. In 2006, textile, footwear, leather mask testing equipment officially put into production and entered the international market.
Q: How about your warranty?
A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.
Q: What is the order process?
A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.
Q: Can we visit your factory before order?
A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.
Q: Do you accept customization service?
A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.
