Thông tin chi tiết sản phẩm:
|
| Áp lực tiêm: | 1 tấn | Kích thước hình ảnh: | 640*480, 1024*768, 2048*1536, 2592*1944 |
|---|---|---|---|
| Kích thước bên ngoài: | Khoảng 1450*850*1680mm | kích thước lò: | 45mm*350mm |
| Phạm vi đường kính: | Φ20-40 | kích thước bên trong: | 500×500×600mm |
| tốc độ mài mòn: | 0,32m/giây | Tiêu chí thiết kế: | CNS-11887/11888; PCTS-7; GB/T 4851 |
| Kích thước bên ngoài: | 180 × 270 × 560 (mm) | Tốc độ quay: | 60/72 vòng/phút |
| Quầy tính tiền: | MÀN HÌNH LCD, 0-999,999 | Phạm vi hiển thị: | ± 0,3 |
| Khoảng cách cố định: | 19-75mm 57-75mm (tùy chọn) | Phạm vi kiểm tra: | 0.005 300W/ ((m*K) |

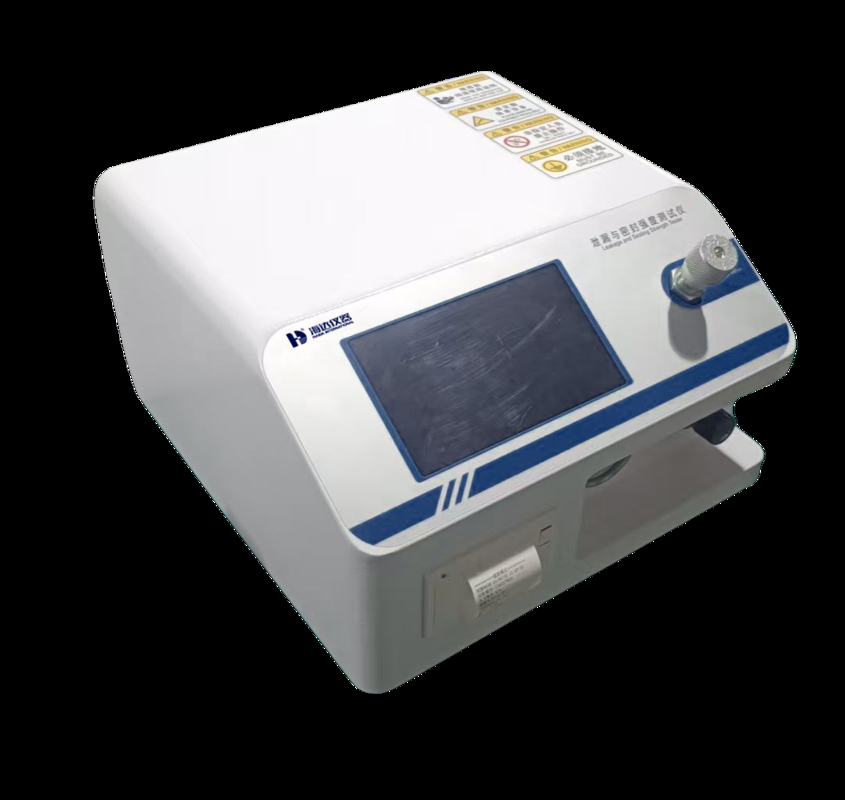

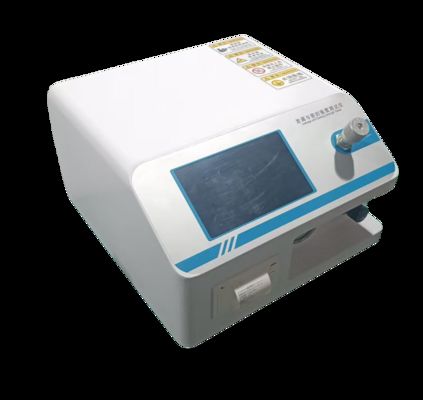

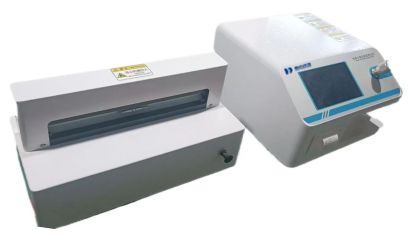

EQUIPMENT DETAILS OF 5084-HD LEAK BURST TESTER
PRODUCT DESCRIPTION
The leak burst tester is professionally used to test the comprehensive sealing performance of various soft packages (such as heat-sealed/bonded aseptic packaging, hoses) and bottle caps and bottles. It can quantitatively measure the sealing strength, heat-sealing quality, whole bag bursting pressure, and sealing leakage, analyze the material's compressive and bursting strength, and evaluate the bottle cap's sealing, connection release strength, material stress strength, as well as the bottle's compression resistance, burst resistance, and overall sealing pressure resistance of the hose, achieving all-round reliability verification from edge sealing to connection parts.
DESIGN STANDARD
ASTM F1140, ASTM F2054,ISO 11607-1, ISO 11607-2
TECHNICAL PARAMETERS
|
Item |
Description |
|
Test range |
0.00 ~ 600.00Kpa (standard configuration) |
|
Air source pressure |
0.5MPa ~ 0.7MPa (air source user-provided) |
|
Air source interface |
Φ6 mm polyurethane tube |
|
Dimensions |
400 (L) × 400 (W) × 240 (H) mm |
|
Test seat size |
280mm (L) × 380mm (W) × 380mm (H) (can be customized) |
|
Net weight |
30kg(Including Test Fixture) |
Haida International Equipment Co,Ltd
Haida International Equipment Co,Ltd was established in 2004, located in Dongguan city, Guangdong Province, China, is specialized in production and R&D of various material physical properties testing equipment. We have our own independent research and development center and four testing equipment production lines: textile, footwear, leather, mask. In 2006, textile, footwear, leather mask testing equipment officially put into production and entered the international market.
Q: How about your warranty?
A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.
Q: What is the order process?
A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.
Q: Can we visit your factory before order?
A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.
Q: Do you accept customization service?
A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.
