Thông tin chi tiết sản phẩm:
|
| nhiệt độ nước duy trì: | 60±2℃ | Thân xe tăng: | 2～5 chu kỳ mỗi phút |
|---|---|---|---|
| Kích thước máy: | 1350mm * 1050mm * 2550mm | Tổng trọng lượng: | 210kg |
| nguồn nhiệt: | máy sưởi gốm | Màn hình cảm ứng: | LCD |
| Làm nổi bật: | Cookware Valves Anti-Siphon Test Machine,Anti-Siphon Test Machine |
||
| Attribute | Value |
|---|---|
| Water temperature maintain | 60±2℃ |
| Tank body material | 2～5 cycles per minute |
| Machine Size | 1350mm*1050mm*2550mm |
| Gross Weight | 210KG |
| Heat source | Ceramic heater |
| Touch screen | LCD |

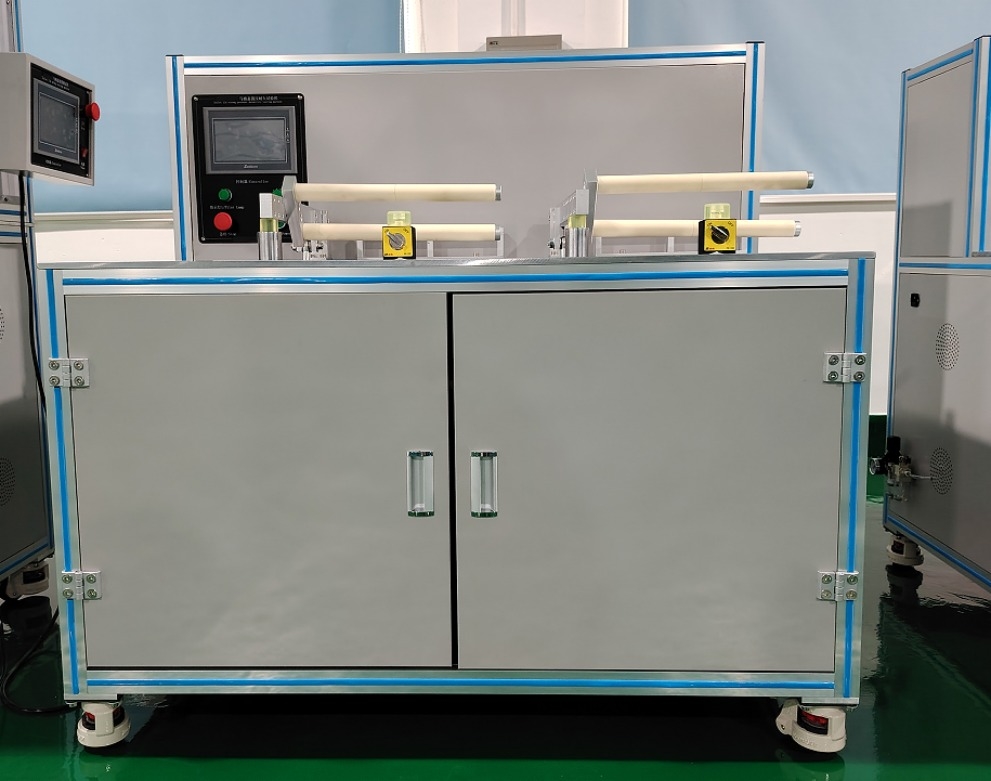

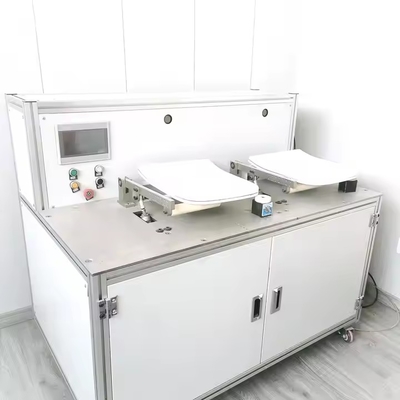

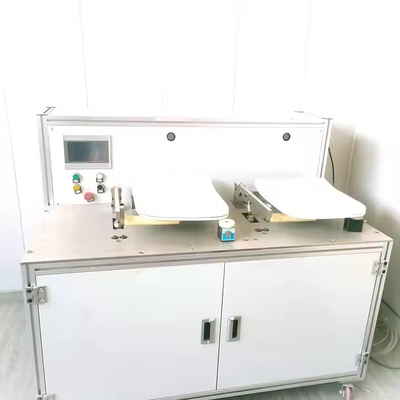

This equipment is dedicated to testing the anti-siphon performance of water inlet valves. It features a transparent container between the sample and vacuum machine to collect water flow during failed siphon tests, protecting the vacuum machine from damage. The vacuum system simulates vacuum states in water supply pipelines to detect siphon phenomena in water inlet valves.
ASME A112.18.1-2018 CSA B125.1-18(C) 5.9
| Feature | Specification |
|---|---|
| Number of Workstations | Single workstation |
| Test Pressure | 0 ~0.1 PA (adjustable), 0.5% full scale accuracy |
| Pressure Adjustment | Manual control |
| Observation Tube ID | 13 mm |
| Immersion Depth | 13 mm |
| Vacuum Generation | Vacuum pump |
| Test Fixtures | Customized per specification (≥2 pcs each) |
| Timer Range | 0-99.99 (Hours, Minutes, seconds) |
| Dimensions | 1000x1000x1600 mm |
| Power supply | AC220V 50HZ |
| Weight | Approx. 120 kg |
Established in 2004 and located in Dongguan city, Guangdong Province, China, Haida specializes in production and R&D of various material physical properties testing equipment. We have our own independent R&D center and four testing equipment production lines: textile, footwear, leather, and mask. Our testing equipment entered the international market in 2006.
