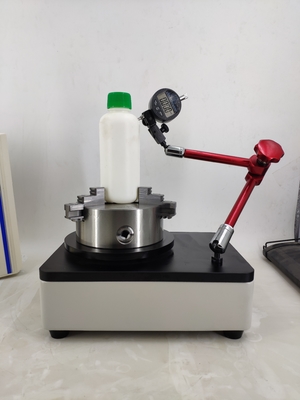

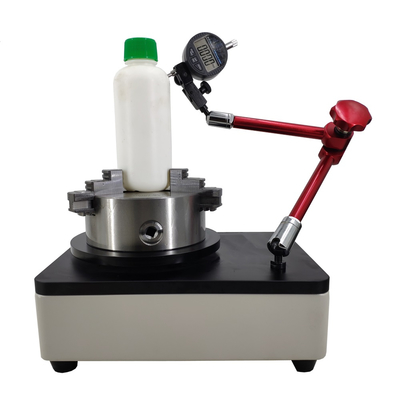

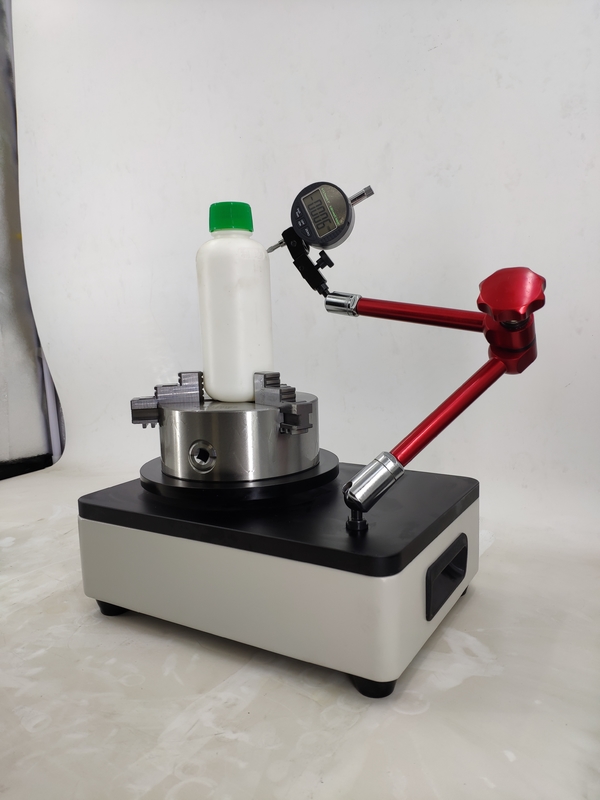

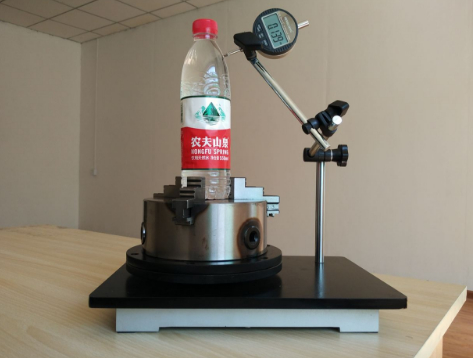

Accurate Bottle Axis Deviation Tester For Verticality Measurement

Accurate Bottle Axis Deviation Tester For Verticality Measurement
Accurate Bottle Axis Deviation Tester For Verticality Measurement Accurate Bottle Axis Deviation Tester For Verticality Measurement Accurate Bottle Axis Deviation Tester For Verticality Measurement Accurate Bottle Axis Deviation Tester For Verticality Measurement

Hình ảnh lớn :  Accurate Bottle Axis Deviation Tester For Verticality Measurement

Thông tin chi tiết sản phẩm:
Nguồn gốc: Trung Quốc
Hàng hiệu: Haida
Chứng nhận: CE、ISO
Số mô hình: 5078-HD
Thanh toán:
Số lượng đặt hàng tối thiểu: 1 bộ
Giá bán: Có thể đàm phán
chi tiết đóng gói: mỗi bộ được bảo vệ bằng sợi nhựa và màng PP, sau đó được đưa vào hộp gỗ chắc chắn với người vận hành
Thời gian giao hàng: 20 ngày sau khi xác nhận đơn đặt hàng
Điều khoản thanh toán: L/C, D/A, D/P, T/T, Liên minh phương Tây, Moneygram
Khả năng cung cấp: 300 bộ mỗi tháng

Accurate Bottle Axis Deviation Tester For Verticality Measurement

Sự miêu tả
Chức năng: Kiểm tra nén, kiểm tra cường độ nén ống giấy, thử nghiệm nổ, kiểm tra độ bền kéo, dụng cụ kiểm tra g Tên: Máy kiểm tra cường độ nén ống giấy, dụng cụ kiểm tra giấy GSM TEST/ TESTER TESTER
Trưng bày: LCD, hiển thị kỹ thuật số Đơn vị chuyển đổi: KGF, n. (Tùy chọn), LBF
tốc độ kiểm tra: 10 ~ 200 mm/phút Kích thước: 360*264*400mm, 70*34*60 cm, 85*65*80cm
Phạm vi đo lường: 250-5600 kPa, 10 ~ 1000mn Chế độ hiển thị: Màn hình LCD, chế độ kỹ thuật số
Các tiêu chí thiết kế: ISO 2248, ASTM-D2210, Tappi T403, GB/T4857-92, JIS Z0202-87
Làm nổi bật:

bottle axis deviation tester

,

Accurate Bottle Axis Deviation Tester

Bottle Axis Deviation Tester
Key Features
  • Precision measurement of bottle container vertical deviation
  • Essential for quality control in food, cosmetics, and pharmaceutical industries
  • Four-claw self-centering chuck with high concentricity
  • Adjustable height and orientation for various bottle types
  • Digital LCD display with multiple unit options
  • Computer connectivity for data analysis (optional)
Technical Specifications
Parameter Value
Sample Diameter Positive claw 3-55mm, reverse claw 55-145mm
Centering Chuck Four-claw/three-claw optional
Measuring Range 0-12.7mm
Resolution 0.001mm
Indication Error ±0.005mm
Measurement Error ≤0.05mm
Measurable Height 5mm-400mm
Weight 20kg
Dimensions 330mm × 240mm × 240mm
Testing Principle

The bottle bottom is fixed on the rotating disk of the horizontal plate, with the bottle mouth contacting the micrometer. Rotating 360° reveals maximum and minimum values, with 1/2 of their difference being the vertical axis deviation value.

Compliance Standards
  • QB2357
  • QB/T1868
  • YY 0056
  • YBB 00012012
  • GBT 8452
  • GB 2637
  • YBB 00332002
  • YBB 00042012
  • YBB 00052012
Applications

Ideal for bottle manufacturers, quality control departments, and research institutions in food, cosmetics, pharmaceutical, and packaging industries.

Accurate Bottle Axis Deviation Tester For Verticality Measurement 0
About Haida

Haida products are widely used across paper goods, packaging, printing, adhesive tapes, footwear, electronics, plastics, and rubber industries. Our instruments comply with UL, ASTM, JIS, GB, and ISO standards, serving research institutions and quality inspection agencies worldwide.
