Thermal Conductivity Testing With Rubber Plastic Test Equipment Specimen Size / Digital Thickness Measurement / Board Materials

Chứng nhận
TRUNG QUỐC Hai Da Labtester Chứng chỉ
TRUNG QUỐC Hai Da Labtester Chứng chỉ
Khách hàng đánh giá
Có chúng tôi đã nhận được máy vào tuần trước. Chúng tôi hiện đang rất bận rộn và tôi chưa thể kiểm tra nó, nhưng nó có vẻ ổn với tôi.

—— Peter Maas

Thay mặt của công ty để thăm các nhà máy và công ty của bạn, các nhân viên kỹ thuật là rất chuyên nghiệp và kiên nhẫn, tôi nghĩ rằng tôi sẽ rất vui khi hợp tác với bạn một lần nữa.

—— Steve Hubbard

Tôi trò chuyện trực tuyến bây giờ

Thermal Conductivity Testing With Rubber Plastic Test Equipment Specimen Size / Digital Thickness Measurement / Board Materials

Thermal Conductivity Testing With Rubber Plastic Test Equipment  Specimen Size / Digital Thickness Measurement / Board Materials
Thermal Conductivity Testing With Rubber Plastic Test Equipment  Specimen Size / Digital Thickness Measurement / Board Materials Thermal Conductivity Testing With Rubber Plastic Test Equipment  Specimen Size / Digital Thickness Measurement / Board Materials Thermal Conductivity Testing With Rubber Plastic Test Equipment  Specimen Size / Digital Thickness Measurement / Board Materials Thermal Conductivity Testing With Rubber Plastic Test Equipment  Specimen Size / Digital Thickness Measurement / Board Materials

Hình ảnh lớn :  Thermal Conductivity Testing With Rubber Plastic Test Equipment Specimen Size / Digital Thickness Measurement / Board Materials

Thông tin chi tiết sản phẩm:
Nguồn gốc: Trung Quốc
Hàng hiệu: Haida
Chứng nhận: CE,,ISO
Số mô hình: 60087-HD
Thanh toán:
Số lượng đặt hàng tối thiểu: 1
Giá bán: Có thể đàm phán
chi tiết đóng gói: mỗi bộ được bảo vệ bằng sợi nhựa và màng PP, sau đó được đưa vào hộp gỗ chắc chắn với người vận hành
Thời gian giao hàng: 20 ngày sau khi xác nhận đơn đặt hàng
Điều khoản thanh toán: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Khả năng cung cấp: 300 bộ mỗi tháng

Thermal Conductivity Testing With Rubber Plastic Test Equipment Specimen Size / Digital Thickness Measurement / Board Materials

Sự miêu tả
Chế độ tạo Ozone: Máy tạo ozone hoặc phương pháp hấp thụ tia cực tím Chế độ kiểm tra a: Nhiệt độ phòng
phân tán: Số Bài kiểm tra tốc độ: Điều chỉnh
sản phẩm: thiết bị kiểm tra cao su Phương pháp kiểm soát: Kiểm tra tự động máy tính
Độ phóng đại quang học: 100 lần Phạm vi nhiệt độ: Nhiệt độ bình thường ~ 200oC
điện sưởi ấm điện: AC220V ± 10%50HZAC220V ± 10%50Hz Tiêu chuẩn kiểm tra: ASTM, ISO, GB, JIS, v.v.
Thùng: Đường kính 9,5504 ± 0,0076mm Đường kính thăm dò a: 7,5mm
Công suất tiêm: 40*65 cm³ Cung cấp không khí: 0,6Mpa
Thông số kỹ thuật: 20-88HRA, 20-100HRB, 20-70HRC
Làm nổi bật:

Rubber Plastic Test Equipment

,

Rubber Plastic Test Machine

,

Board materials Rubber Plastic Test Equipment

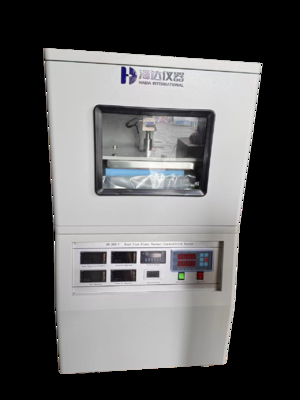

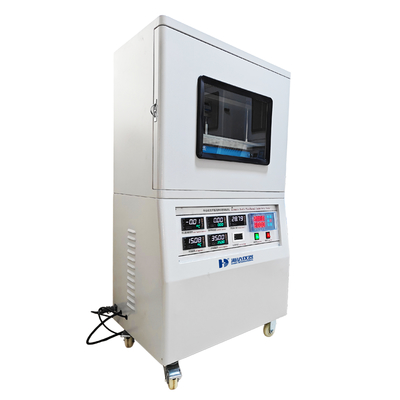

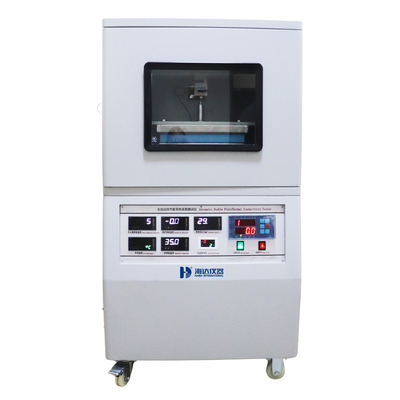

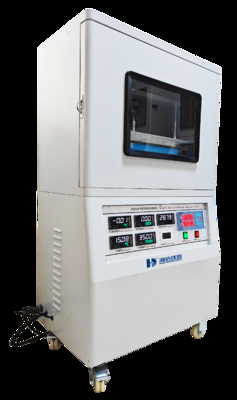

HD-DRH-V Thermal Conductivity Tester

The thermal conductivity tester is mainly used to test plastic, rubber, glass, fiber, benzene board, extruded plastic board, foamed concrete, hollow glass, wood board, all kinds of heat preservation materials and other h omogeneous board materials, and at the same time, it can measure the thermal conductivity of various substances such as granular materials, bulk materials, soft materials.

Thermal Conductivity Testing With Rubber Plastic Test Equipment  Specimen Size / Digital Thickness Measurement / Board Materials 0

Technical Paramet

Item
Parameters
Thermal conductivity range
0.001~3.000 W/m.K
Measuring accuracy
≥±2%
Repeatability error
≤±1%
Sample state
Can test solid material, powder material
Measuring time
60 minutes
Hot surface temperature range
RT~150ºC, resolution: 0.01ºC
Cold surface temperature range
0~60 ºC, resolution: 0.01 ºC
Pressure measurement range
0~500N, resolution: 0.1 N
Sample thickness range
0~50mm, resolution 0.001mm, automatic digital thickness measurement
Specimen size
(Length*Width*Thickness)300*300*(5-50)mm (standard configuration)
Control method
By computer and software
Machine dimension
(L*W*H)550*450*1500mm
Machine weight
Approx. 100KG
Bath dimension
(L*W*H)300*350*530mm
Bath weight
Approx. 35KG
Power
1∮ AC 220V 50W

About us


Haida International Equipment Co,Ltd was established in 2004, located in Dongguan city, Guangdong Province, China, is specialized in production and R&D of various material physical properties testing equipment. We have our own independent research and development center and four testing equipment production lines: textile, footwear, leather, mask. In 2006, textile, footwear, leather mask testing equipment officially put into production and entered the international market.
Thermal Conductivity Testing With Rubber Plastic Test Equipment  Specimen Size / Digital Thickness Measurement / Board Materials 5Thermal Conductivity Testing With Rubber Plastic Test Equipment  Specimen Size / Digital Thickness Measurement / Board Materials 6Thermal Conductivity Testing With Rubber Plastic Test Equipment  Specimen Size / Digital Thickness Measurement / Board Materials 7


Thermal Conductivity Testing With Rubber Plastic Test Equipment  Specimen Size / Digital Thickness Measurement / Board Materials 8

Thermal Conductivity Testing With Rubber Plastic Test Equipment  Specimen Size / Digital Thickness Measurement / Board Materials 9

Thermal Conductivity Testing With Rubber Plastic Test Equipment  Specimen Size / Digital Thickness Measurement / Board Materials 10

Why choose us?
1.Design & Production : Solution Consultation for each order
Recommend the most cost -performance machine
Research & Develop the suitable one for Special- designed Model.
2.Shipping & Delivery: One-Stop Service
Production- Deliver to your door - Installation & Training- Technical Support
3.Warranty
1 year warranty with lifetime technology support
4.After-Sale Service
React within 2 Hours
Video inspection & on-site service combined





FAQ

Q: How about your warranty?

A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.





Q: What is the order process?

A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.





Q: Can we visit your factory before order?

A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.


Q: Do you accept customization service?

A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.
