Thông tin chi tiết sản phẩm:
|
| thể tích buồng: | ≥0,5 m³, với cửa quan sát thủy tinh | Chiếu sáng nội bộ: | <20 Lux |
|---|---|---|---|
| Dầu: | Khí butan (độ tinh khiết ≥95%); Không xâm nhập vào ống đốt | chiều cao ngọn lửa: | Có thể điều chỉnh: 12 mm ± 1mm (bao gồm đo đo) |
| Cơ chế lái: | Có động cơ | hẹn giờ: | Phạm vi điều chỉnh: 0-999,9 giây; Cấu hình đánh lửa/ghi thời gian |
| Nguồn cung cấp điện: | AC 220V, 50Hz, 1KVA | ||
| Làm nổi bật: | Needle Flame Tester,needle flame test equipment,Button-Control Needle Flame Tester |
||
This instrument simulates small flames generated under fault conditions (e.g., leakage currents, component overheating, poor contacts) to assess fire hazards.

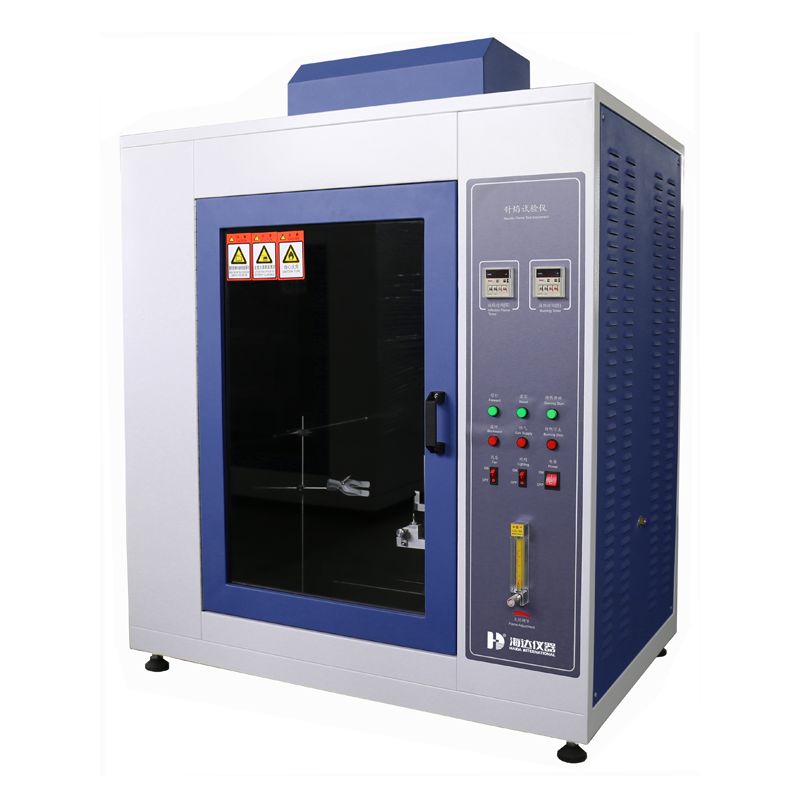

Needle Flame Testing Instrument is specifically designed for evaluating fire risks in small components where glow-wire or horizontal/vertical flame tests are unsuitable. If a sample ignites during glow-wire testing, the needle flame test further analyzes combustion risks. Applicable to parts of electrical/electronic products and household appliances, such as terminal blocks, centrifugal switches, and rice cooker sockets.
This model features PLC + color LCD touchscreen control with an intuitive interface and includes a built-in printer for recording test conditions and results.
| Model | 6011-HD |
| Control System | 7-inch color LCD touchscreen + PLC (Programmable Logic Controller), equipped with test data printer. |
| Display System | 7-inch color LCD touchscreen for setting/displaying burn time, test duration, test date, print interface, and operational status. |
| Chamber Volume | ≥0.5 m³, with glass observation door. |
| Internal Illuminance | <20 Lux. |
| Fuel | Butane gas (≥95% purity); no air ingress into burner tube. |
| Burner Specifications | Length: ≥35mm; Inner diameter: Ø0.5mm±0.1mm; Outer diameter: ≤Ø0.9mm. |
| Flame Height | Adjustable: 12mm±1mm (includes measuring gauge). |
| Flame Temperature | 100°C±5°C to 700°C±3°C in 23.5±1 seconds (optional temperature calibration device available). |
| Timer | Adjustable range: 0-999.9 seconds; Configurable ignition/duration recording. |
| Drive Mechanism | Motorized. |
| Key Features | Automated operation: Burner moves to sample position, shuts off gas post-test, and retracts. 3D-adjustable fixture, integrated ventilation/lighting, and stable performance. |
| Power Supply | AC 220V, 50Hz. |
After-Service:
Should any issues arise during your testing process, we guarantee:
Timely Response: A formal reply within 48 hours.
Swift Resolution: A proposed solution within 3 working days.
Comprehensive Support: Access to English operation manuals, instructional videos, and video conference assistance.
Why Choose Us?
Global-Ready Design
Built-in voltage auto-switching (110V/220V), international plug compatibility, and safety-certified indicator protection.
Exceptional After-Sales Support
18-month comprehensive warranty. Industry-unique benefit: Complimentary repair service for controllers – even competitor units. Simply ship the controller to us.
Binding Quality Commitment
A formal Quality Assurance Letter accompanies every contract signing, guaranteeing performance and building trust.
Industrial-Grade Protective Packaging
(e.g., Triceratops) is individually wrapped in anti-static bubble film and secured in reinforced wooden crates. This ensures:
• Shock absorption & impact resistance
• Moisture & corrosion protection
• Non-toxic, odorless materials
• Optimal transparency for inspection
FAQ:Q: Are you a trading company or manufacturer?
A: Integrated manufacturer with 21+ years specializing in test equipment and 6 years of export expertise.
Q: What is your delivery timeline after order confirmation?
A:Standard orders: 10-25 working days
Stock orders: Ship within 3 days
Note: Lead times vary by product specifications and order volume.
Q: What are your warranty and after-sales service terms?
A:12-month comprehensive warranty on all testing machines
Industry-unique benefit: Complimentary controller repairs (including non-HAIDA units)
Post-warranty support: Dedicated technical team for troubleshooting, operational guidance, and complaint resolution
Q: How do you ensure product quality and service?
A:100% pre-shipment inspection with full performance testing
Global-ready design: Voltage auto-switching (110V/220V), international plugs, safety-certified indicators
Multi-tier training support:
✓ Instructional operation videos
✓ On-site engineer training (upon request)
Market-proven reliability:
Globally recognized by industrial users
Q: Do you offer product customization?
A: Yes, we develop tailored solutions based on your technical parameters and application requirements.
