Thông tin chi tiết sản phẩm:
|
| Kích thước tổng thể (L×W×H): | 1200 × 700 × 1500mm | Kích thước buồng đốt (L × W × H): | 385 × 204 × 360mm |
|---|---|---|---|
| Thời gian áp dụng ngọn lửa: | Có thể điều chỉnh: 0-3200.0 giây | thời gian cháy: | Có thể điều chỉnh: 0-3200.0 giây |
| góc đầu đốt: | Đã sửa ở 90 ° (dọc) | chiều cao ngọn lửa: | Có thể điều chỉnh: 20-100mm (tuân thủ tiêu chuẩn) |
| hiển thị nhiệt độ: | Đọc kỹ thuật số; Độ phân giải: 0,1 ° C. | Đường cầm thép: | Chiều dài: 500mm; Độ chính xác: 1mm |
| khí nhiên liệu: | Khí hóa lỏng tinh khiết cao (do người dùng cung cấp) do người dùng cung cấp) | Nguồn cung cấp điện: | Điện xoay chiều 220V, 50HZ |
| Làm nổi bật: | Automotive Interiors Flammability Test Equipment,Horizontal Flammability Test Equipment,Horizontal Testing Machine |
||

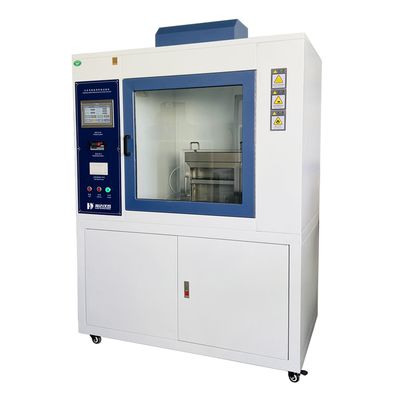

Automotive Interior Materials Flammability Tester is designed and manufactured in accordance with GB 8410-2006 to evaluate the horizontal burning characteristics of automotive interior materials.
GB 8410-2006, ASTM D5132, FMVSS 571.302, ISO 3795
Stainless steel combustion chamber: Resistant to smoke and gas corrosion.
Automated control system: Includes automatic ignition, gas supply, timing, and test termination.
User-friendly interface: 7-inch color LCD touchscreen with real-time data display and printing.
| Model | 6021-HD |
| Control System | 7-inch color LCD touchscreen + PLC (Programmable Logic Controller), with built-in test data printer. |
| Display System | Real-time monitoring of flame application time, burning time, and burning speed. Controls include flame start/stop and combustion length input. |
| Overall Dimensions (L×W×H) | 1200×700×1500mm |
| Combustion Chamber Dimensions (L×W×H) | 385×204×360mm |
| Flame Application Time | Adjustable: 0-3200.0 seconds |
| Burning Time | Adjustable: 0-3200.0 seconds |
| Burner Angle | Fixed at 90° (vertical) |
| Burner Specifications | Nozzle inner diameter: Ø9.5mm; Effective length: 100mm; Equipped with air adjustment holes |
| Flame Height | Adjustable: 20-100mm (standard-compliant) |
| Temperature Display | Digital readout; Resolution: 0.1°C |
| Steel Ruler | Length: 500mm; Accuracy: 1mm |
| Fuel Gas | High-purity liquefied gas (user-provided) |
| Configuration | Includes: |
| • Control system | |
| • Combustion chamber | |
| • Burner assembly | |
| • Solenoid valve | |
| • High-voltage igniter | |
| • Temperature display | |
| • Signal control cables | |
| • Upper/lower sample holders | |
| • 500mm/1mm steel ruler | |
| Power Supply | AC 220V, 50Hz |
Why Choose Us?
Global-Ready Design
Built-in voltage auto-switching (110V/220V), international plug compatibility, and safety-certified indicator protection.
Exceptional After-Sales Support
18-month comprehensive warranty. Industry-unique benefit: Complimentary repair service for controllers – even competitor units. Simply ship the controller to us.
Binding Quality Commitment
A formal Quality Assurance Letter accompanies every contract signing, guaranteeing performance and building trust.
Industrial-Grade Protective Packaging
(e.g., Triceratops) is individually wrapped in anti-static bubble film and secured in reinforced wooden crates. This ensures:
• Shock absorption & impact resistance
• Moisture & corrosion protection
• Non-toxic, odorless materials
• Optimal transparency for inspection
FAQ:Q: Are you a trading company or manufacturer?
A: Integrated manufacturer with 21+ years specializing in test equipment and 6 years of export expertise.
Q: What is your delivery timeline after order confirmation?
A:Standard orders: 10-25 working days
Stock orders: Ship within 3 days
Note: Lead times vary by product specifications and order volume.
Q: What are your warranty and after-sales service terms?
A:12-month comprehensive warranty on all testing machines
Industry-unique benefit: Complimentary controller repairs (including non-HAIDA units)
Post-warranty support: Dedicated technical team for troubleshooting, operational guidance, and complaint resolution
Q: How do you ensure product quality and service?
A:100% pre-shipment inspection with full performance testing
Global-ready design: Voltage auto-switching (110V/220V), international plugs, safety-certified indicators
Multi-tier training support:
✓ Instructional operation videos
✓ On-site engineer training (upon request)
Market-proven reliability:
Globally recognized by industrial users
Q: Do you offer product customization?
A: Yes, we develop tailored solutions based on your technical parameters and application requirements.
