Thông tin chi tiết sản phẩm:
|
| Thời gian áp dụng ngọn lửa: | Có thể điều chỉnh: 0-99 phút 99 giây | Thời gian sau khi bốc cháy: | Có thể điều chỉnh: 0-99 phút 99 giây |
|---|---|---|---|
| góc đầu đốt: | Cố định ở 45 ° | chiều cao ngọn lửa: | Có thể điều chỉnh thành 20 ± 2 mm (tuân thủ tiêu chuẩn) |
| khí nhiên liệu: | Khí propan (độ tinh khiết ≥95%) | Nguồn cung cấp điện: | Điện xoay chiều 220V, 50HZ |
| Làm nổi bật: | combustion test chamber,building materials flammability tester |
||

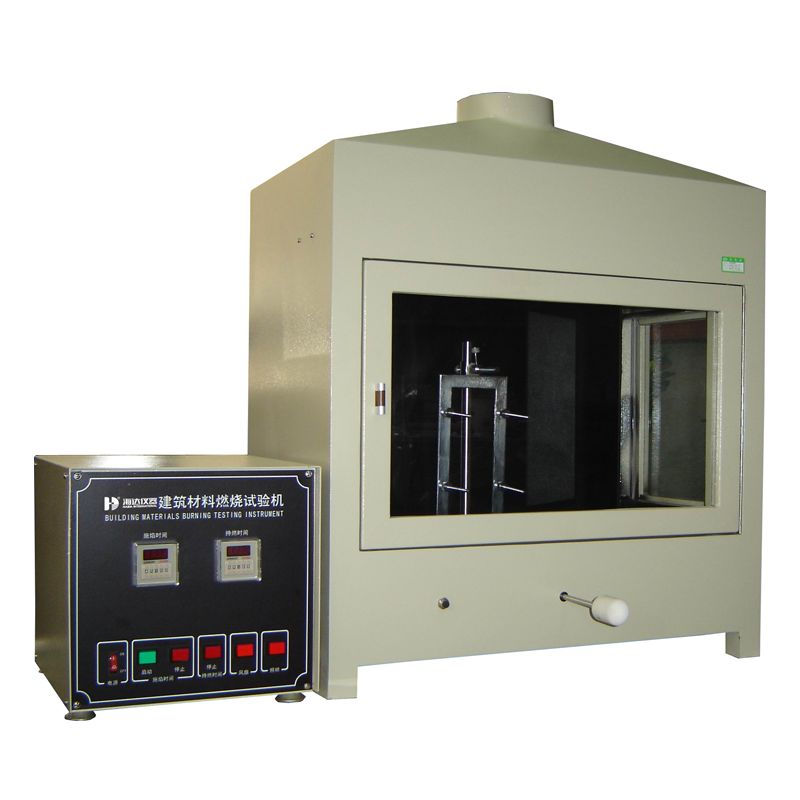

This combustion test apparatus is designed and manufactured in accordance with GB/T 8626-2007 to determine the flammability of building materials under specified conditions.
| Model | 6020-HD |
| Chamber Dimensions | 700mm (L) × 400mm (W) × 810mm (H); includes: |
| Ø150mm exhaust port (top) | |
| Glass observation windows (front & right) | |
| Stainless steel mesh base | |
| Flame Application Time | Adjustable: 0-99 minutes 99 seconds |
| Afterflame Time | Adjustable: 0-99 minutes 99 seconds |
| Burner Angle | Fixed at 45° |
| Burner Specifications | Nozzle diameter: Ø0.17mm; equipped with 4 air intake holes (Ø4mm each) and a regulating valve. |
| Flame Height | Adjustable to 20±2mm (standard-compliant). |
| Fuel Gas | Propane gas (≥95% purity). |
| Configuration | Includes |
| Control unit | |
| Combustion chamber | |
| Burner assembly | |
| Solenoid valve | |
| High-voltage igniter | |
| Signal control cables | |
| Sample holder | |
| Power Supply | AC 220V, 50Hz |
Why Choose Us?
Global-Ready Design
Built-in voltage auto-switching (110V/220V), international plug compatibility, and safety-certified indicator protection.
Exceptional After-Sales Support
18-month comprehensive warranty. Industry-unique benefit: Complimentary repair service for controllers – even competitor units. Simply ship the controller to us.
Binding Quality Commitment
A formal Quality Assurance Letter accompanies every contract signing, guaranteeing performance and building trust.
Industrial-Grade Protective Packaging
(e.g., Triceratops) is individually wrapped in anti-static bubble film and secured in reinforced wooden crates. This ensures:
• Shock absorption & impact resistance
• Moisture & corrosion protection
• Non-toxic, odorless materials
• Optimal transparency for inspection
FAQ:Q: Are you a trading company or manufacturer?
A: Integrated manufacturer with 21+ years specializing in test equipment and 6 years of export expertise.
Q: What is your delivery timeline after order confirmation?
A:Standard orders: 10-25 working days
Stock orders: Ship within 3 days
Note: Lead times vary by product specifications and order volume.
Q: What are your warranty and after-sales service terms?
A:12-month comprehensive warranty on all testing machines
Industry-unique benefit: Complimentary controller repairs (including non-HAIDA units)
Post-warranty support: Dedicated technical team for troubleshooting, operational guidance, and complaint resolution
Q: How do you ensure product quality and service?
A:100% pre-shipment inspection with full performance testing
Global-ready design: Voltage auto-switching (110V/220V), international plugs, safety-certified indicators
Multi-tier training support:
✓ Instructional operation videos
✓ On-site engineer training (upon request)
Market-proven reliability:
Globally recognized by industrial users
Q: Do you offer product customization?
A: Yes, we develop tailored solutions based on your technical parameters and application requirements.
